產品

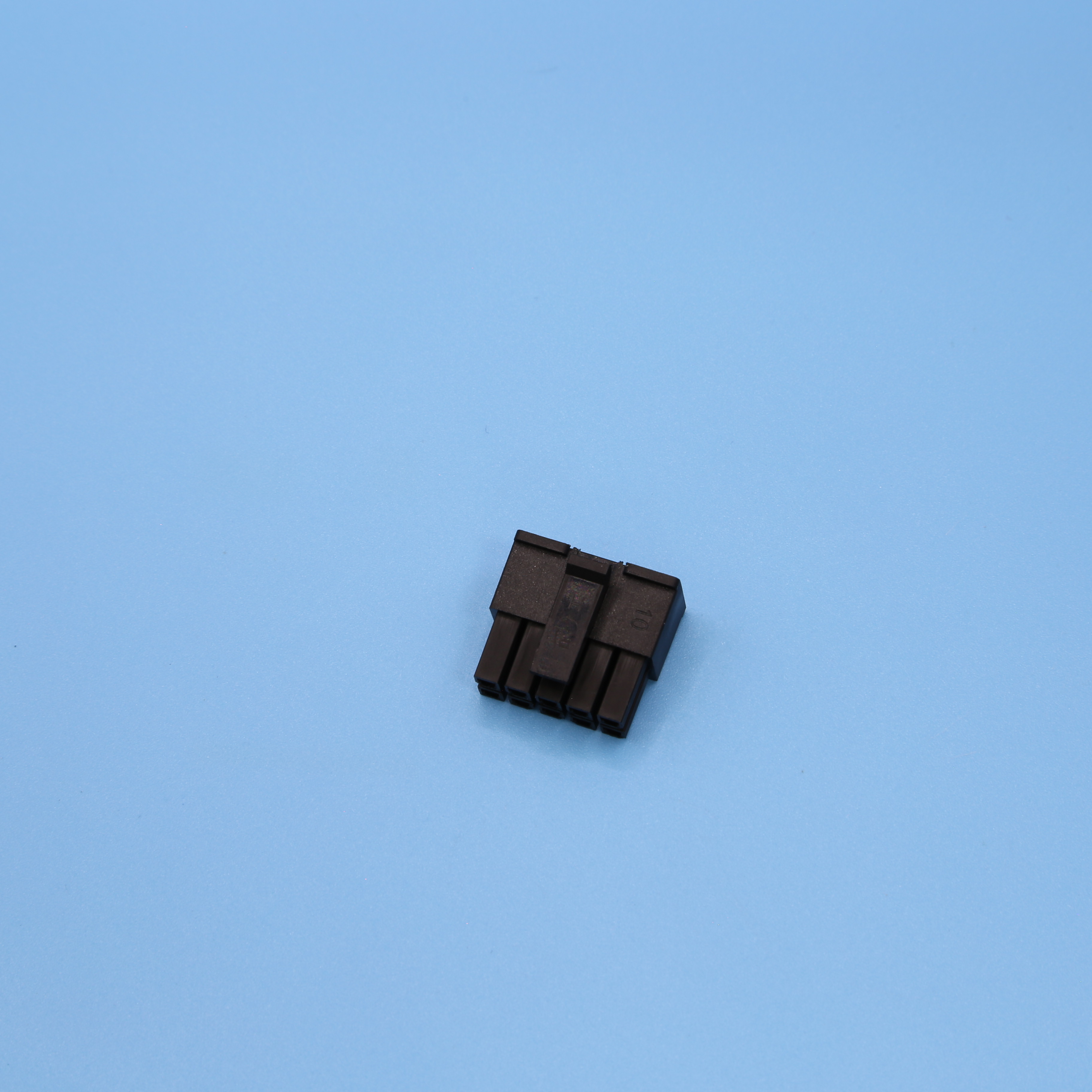

Commonly known as(俗稱):MOLEX3.0母殼
MATERIAL(材質):PA66(UL94V-0);
Color(顏色):See list(詳見列表):
Mates with terminal(配合端子):TCT3003 Series;
Mating terminal(對手件):TCH3004-2XNP Series;
Standard packing(包裝):See list(詳見列表);
The product conform to the RoHS(此產品符合RoHS要求):

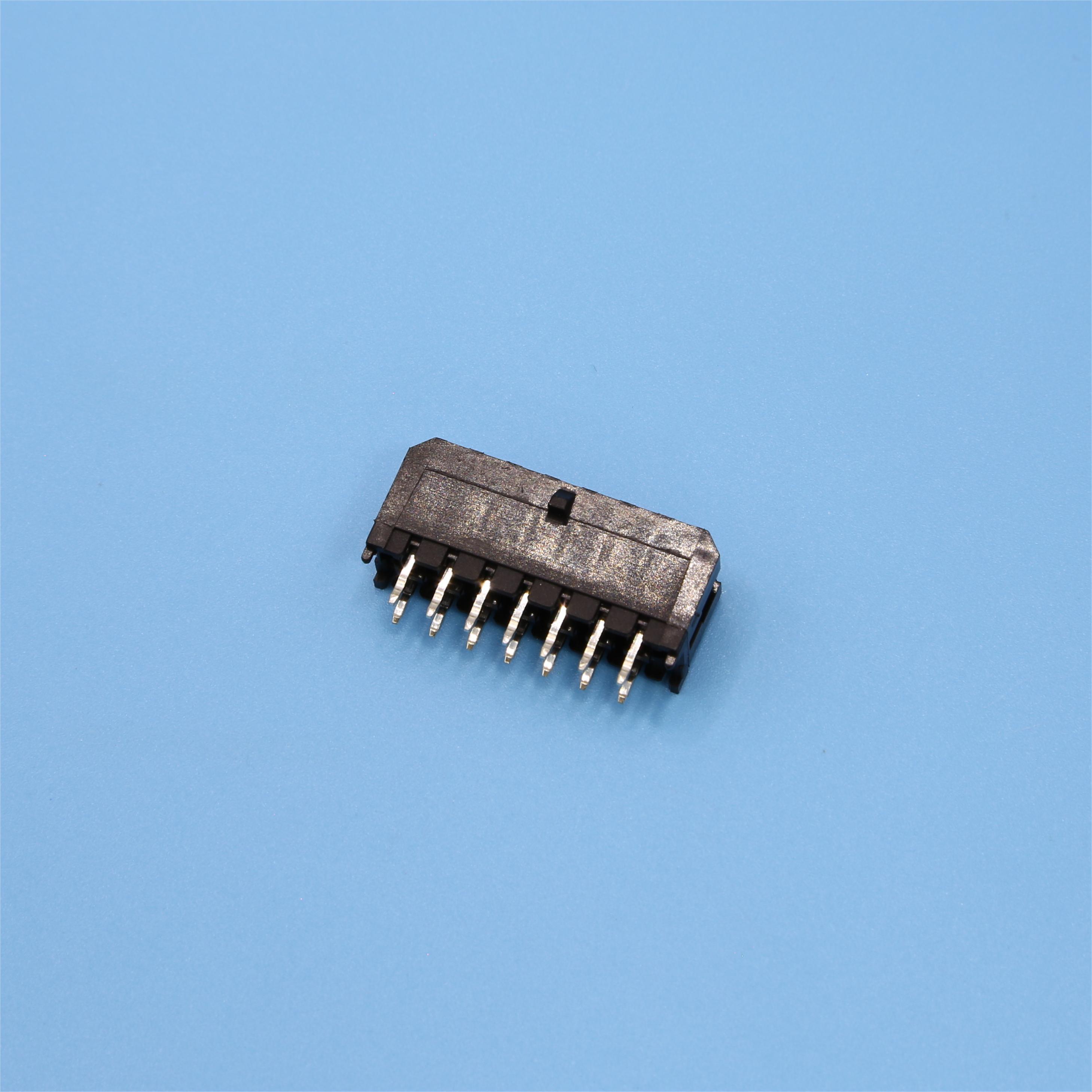

Commonly known as(俗稱):MOLEX3.0針座
Material(材質):
Insulator(塑膠):PA66 GF15%(UL94 V-0):
PIN: BRASS(黃銅);
Color(顏色):See List(見列表);
PIN Surface treatment(PIN表面處理):Tin Plating(鍍錫);
Mates with terminal(配合塑膠):TCH3004-2XNP Series ;
Standard packing(包裝數量):See List(見列表)
The product conform to the RoHS(此產品符合RoHS要求)。

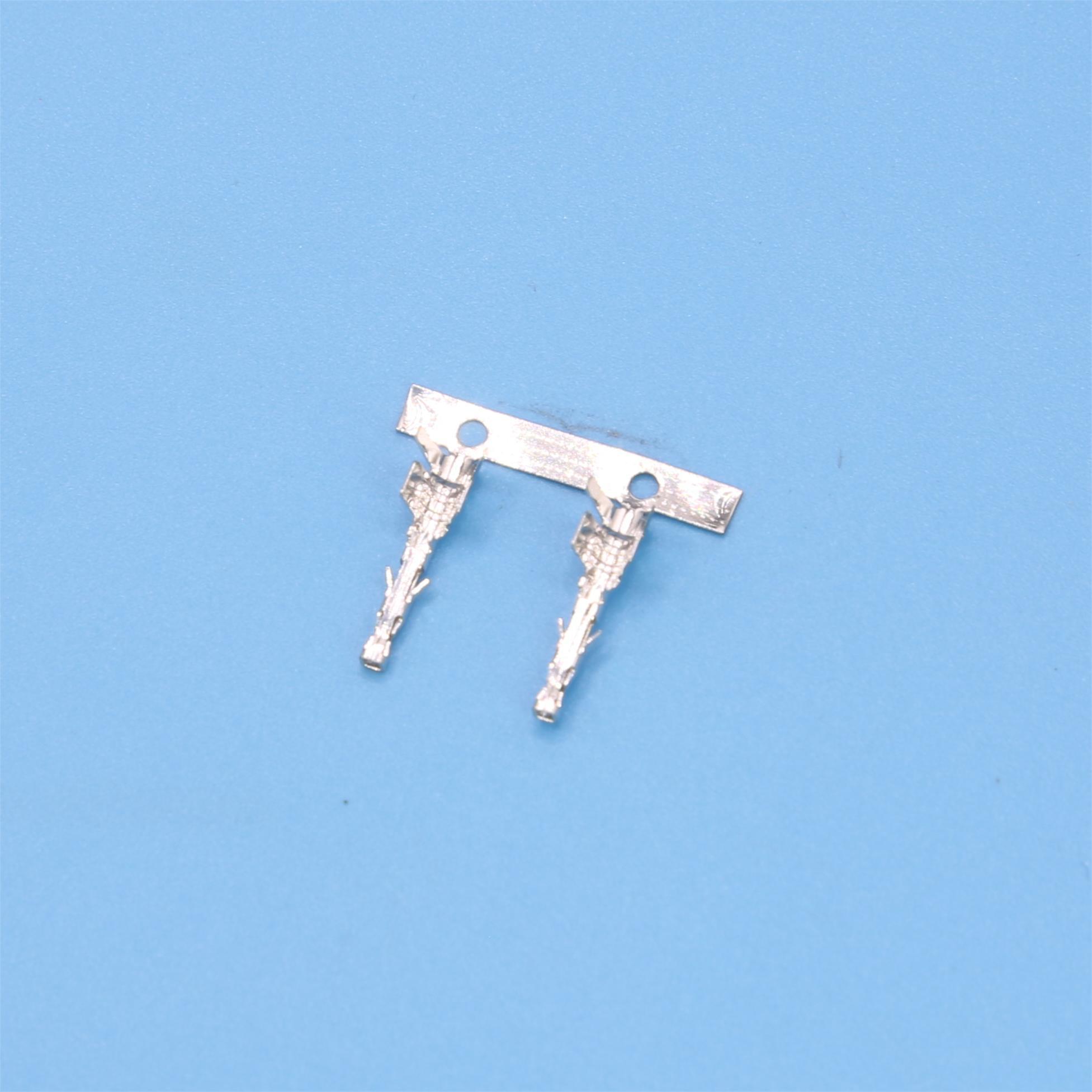

Commonly known as(俗稱):MOLEX3.0母端
Material(材質):Phosphor Bronze(磷青銅);
Applicabie wire(適用線徑):See list(詳見列表);
Insulation 0.D(線皮外徑):See list(詳見列表);
Mates with housing(配合塑膠):TCH3004-2XNPSeries;
Mates with PIN (配合公PIN):0.64四方PIN;
Standard packing(包裝數量):5.5KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

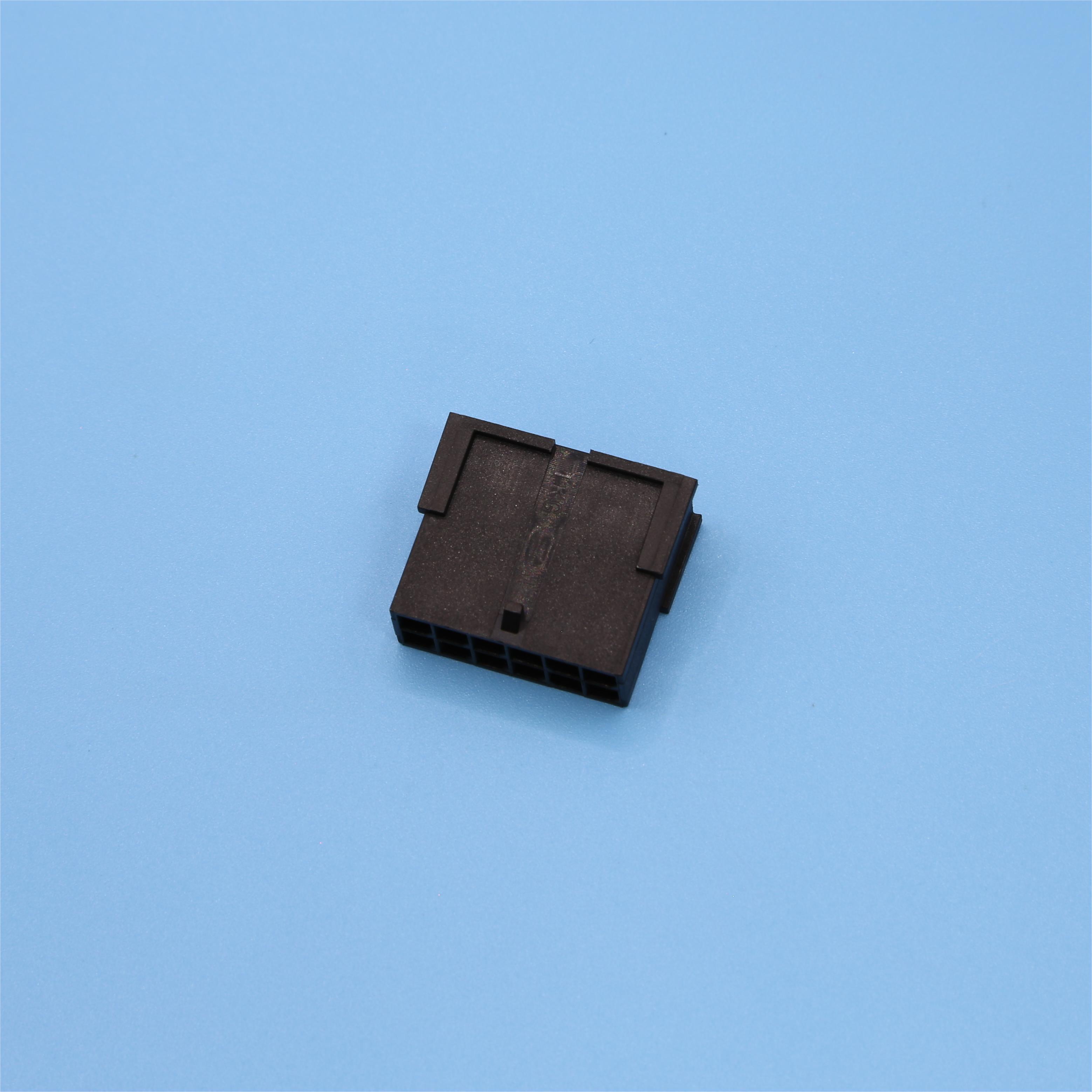

Commonly known as(俗稱):MOLEX3.0公殼
MATERIAL(材質):PA66 UL94 V-0;
Color(顏色):See list(詳見列表);
Mates with terminal(配合端子):TCT3004 Series;
Mating terminal(對手件):TCW3003-2XNP Series;
Standard packing(包裝):See list(詳見列表);
The product conform to the RoHS(此產品符合RoHS要求);
Commonly known as(俗稱):MOLEX4.2公端
Material(材質):See list(詳見列表):
Applicabie wire(適用線徑):See list(詳見列表):
Insulation 0.D(線皮外徑):See list(詳見列表):
Mates with housing(配合塑膠):TCH4201 Series;
Standard packing(包裝數量):See list(詳見列表):
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):MOLEX4.2母殼
MATERIAL(材質):PA66 UL94 V-2;
Color(顏色):See list(詳見列表);
Mates with terminal(配合端子):TCT4201 Series;
Mating terminal(對手件):TCH4202-2XNP Series;
Standard packing(包裝):1KPcs/Bag;
The product conform to the RoHS(此產品符合RoHS要求);
Commonly known as(俗稱):MOLEX4.2針座
Material(材質):
Insulator(塑膠):PA66 GF15(UL94 V-0);
PIN: Brass(黃銅);
Color(顏色):See List(見列表):
PIN Surface treatment(PIN表面處理):See List(見列表);
Mates with terminal(配合塑膠):See List(見列表):
Standard packing(包裝數量):See List(見列表):
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):MOLEX4.2母端
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):See list(詳見列表);
Insulation 0.D(線皮外徑):See list(詳見列表);
Mates with housing(配合塑膠):TCH4202 Series;
Standard packing(包裝數量):See list(詳見列表);
The product conform to the RoHS(此產品符合RoHS要求);

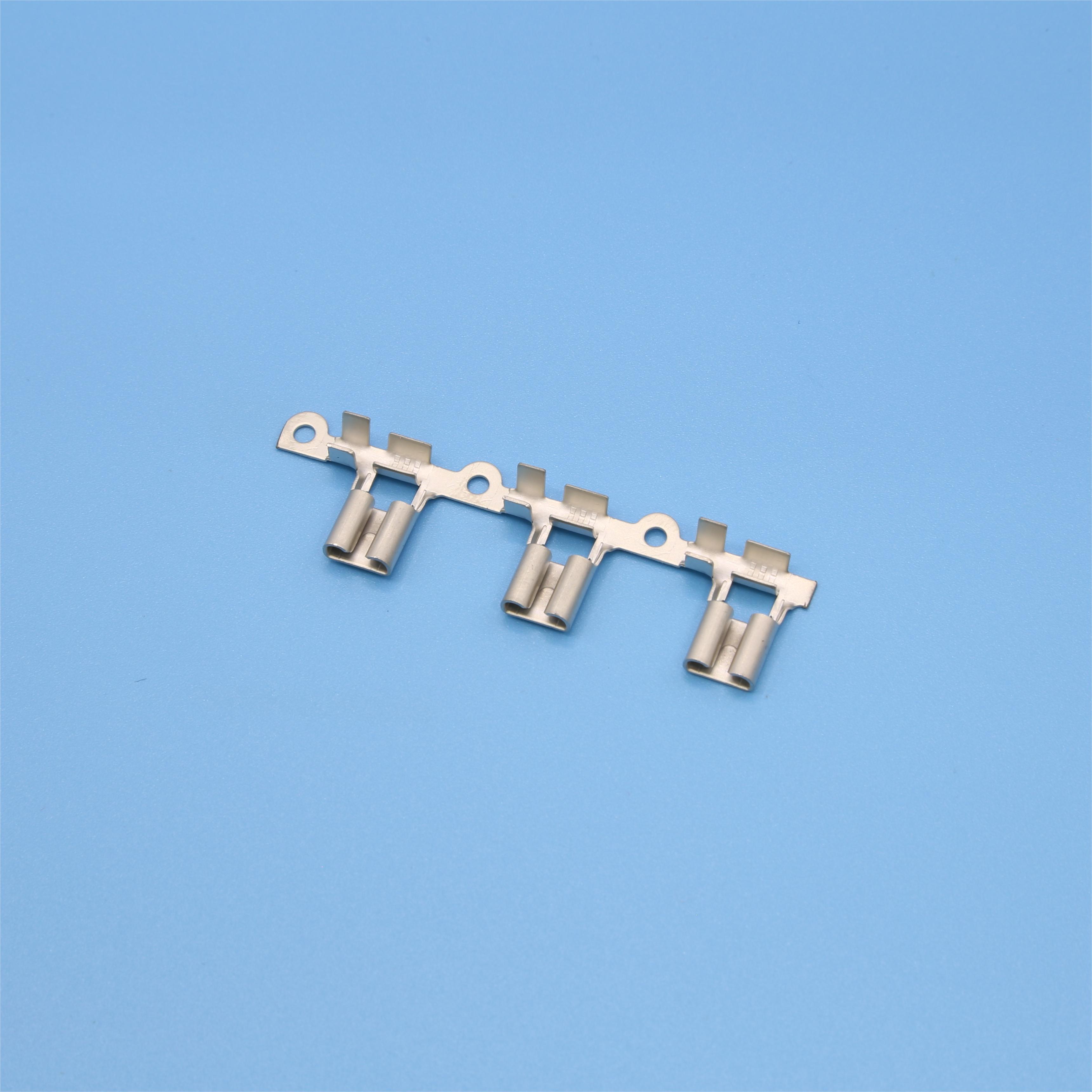

Commonly known as(俗稱):旗型端子
MATERIAL(材質):Brass（黃銅）;
Mates with housing(配合塑膠):無
Applicable wire(適用線徑):UL1007 AWG#14~#22;
Insulation O.D（線皮外徑）：?2.7~1.6mm;
Standard packing(包裝):5KPcs/Disc;
The product conform to the RoHS;
(此產品符合ROHS指令要求);

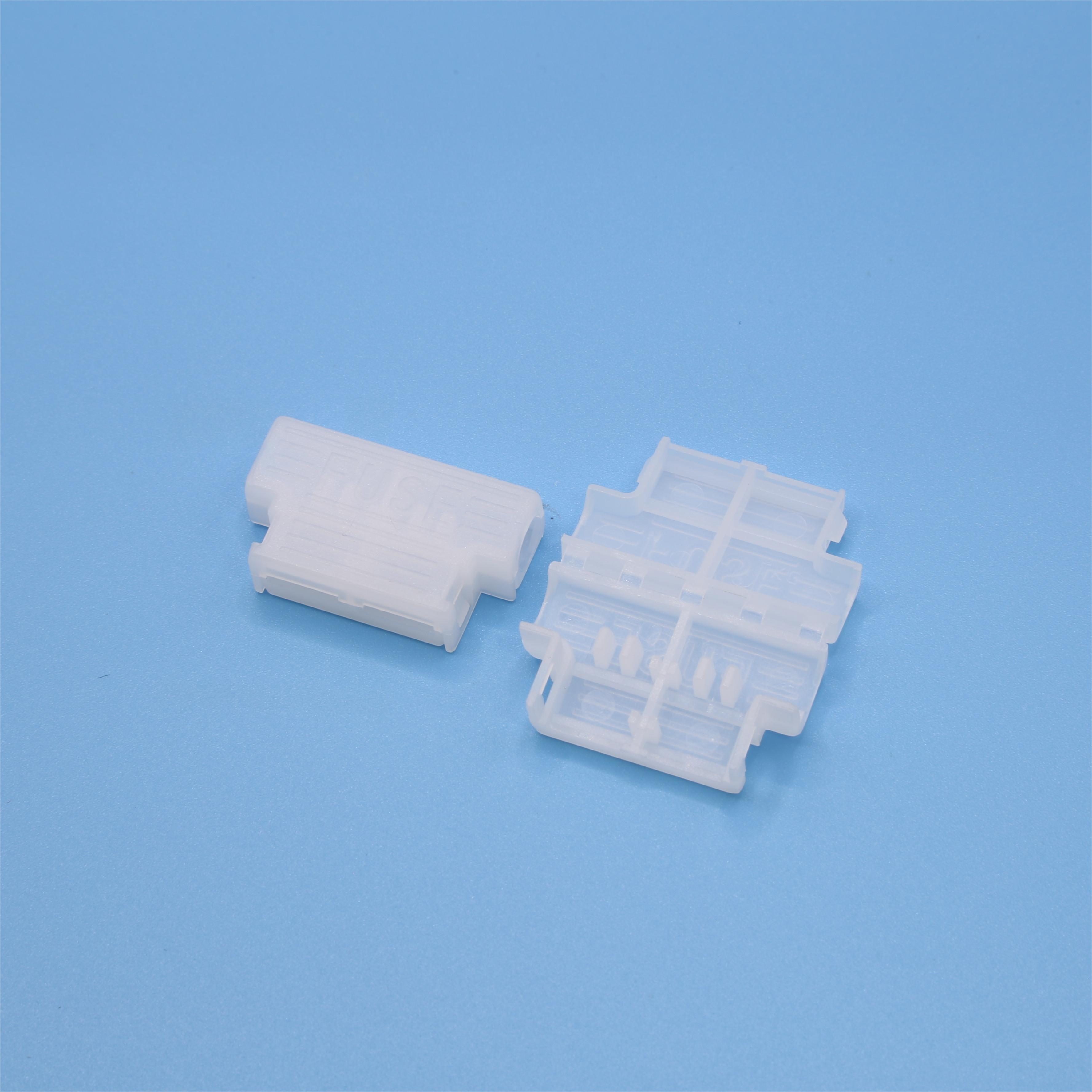

Commonly known as(俗稱):旗型保護盒
Material(材質):See List(見列表):
Color(顏色):See List(見列表):
Mates with Terminal(配合端子):TAT205 Series;
Standard packing(包裝數量):See List(見列表):
The product conform to the RoHS(此產品符合RoHS要求)。
