3.96 PITCH系列

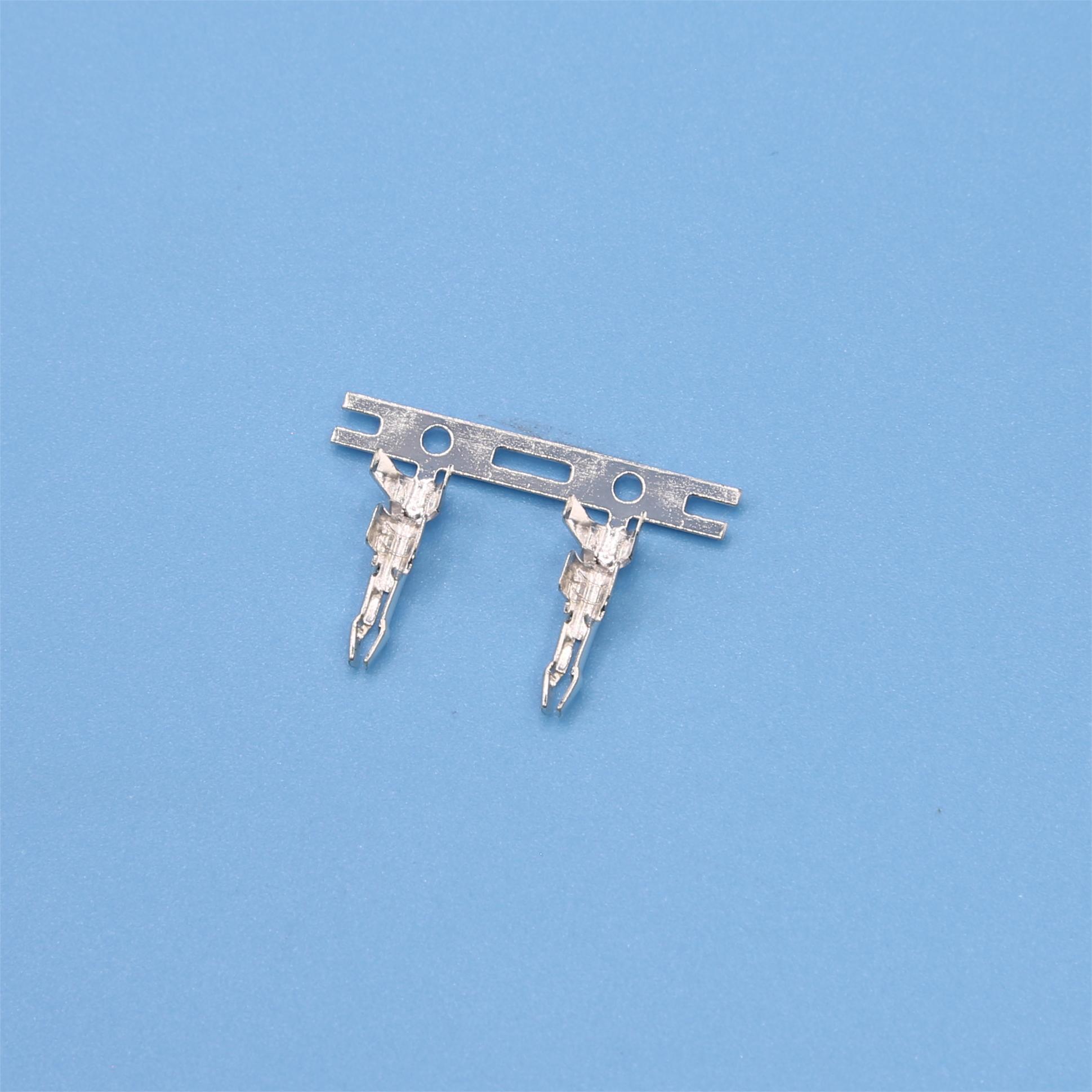

Commonly known as(俗稱):JE3.96基板端
MATERIAL(材質):See List(見列表)；
Contact Plating(電鍍):See List(見列表)；
Applicable wire(適用線徑):UL1007 AWG#16~#22
Insulation O.D（線皮外徑）：?2.4~1.6;
Standard packing(包裝):5KPCS/DISC;
The product conform to the RoHS;
(此產品符合ROHS指令要求);

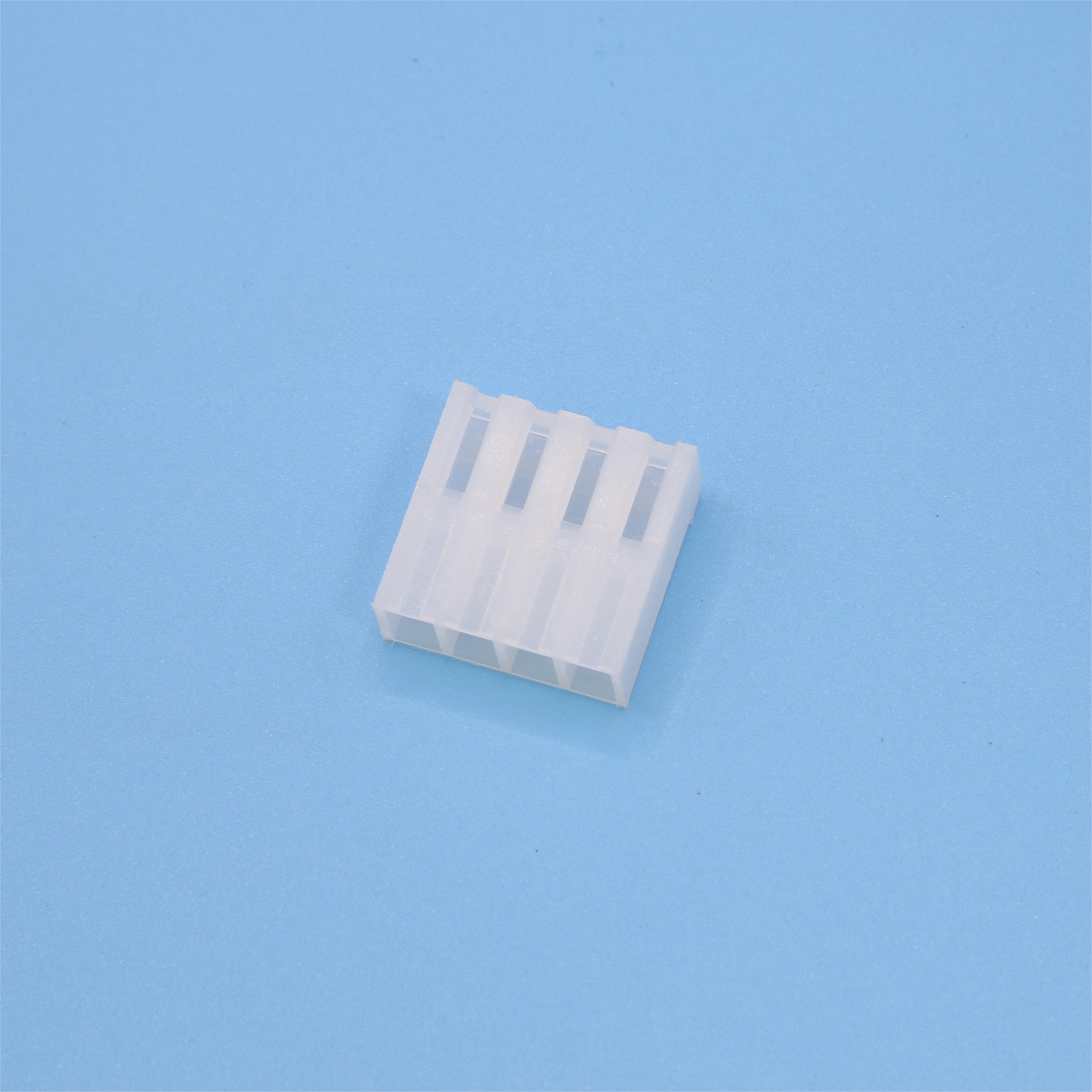

Commonly known as(俗稱):JE3.96 膠殼
MATERIAL(材質):PA66(UL94V-2);
Product Colar(產品顏色):Natural(本色）;
Mates with terminal(配合端子）: TB3951P-T系列;
The product conform to the RoHS
(此產品符合RoHS要求) ;

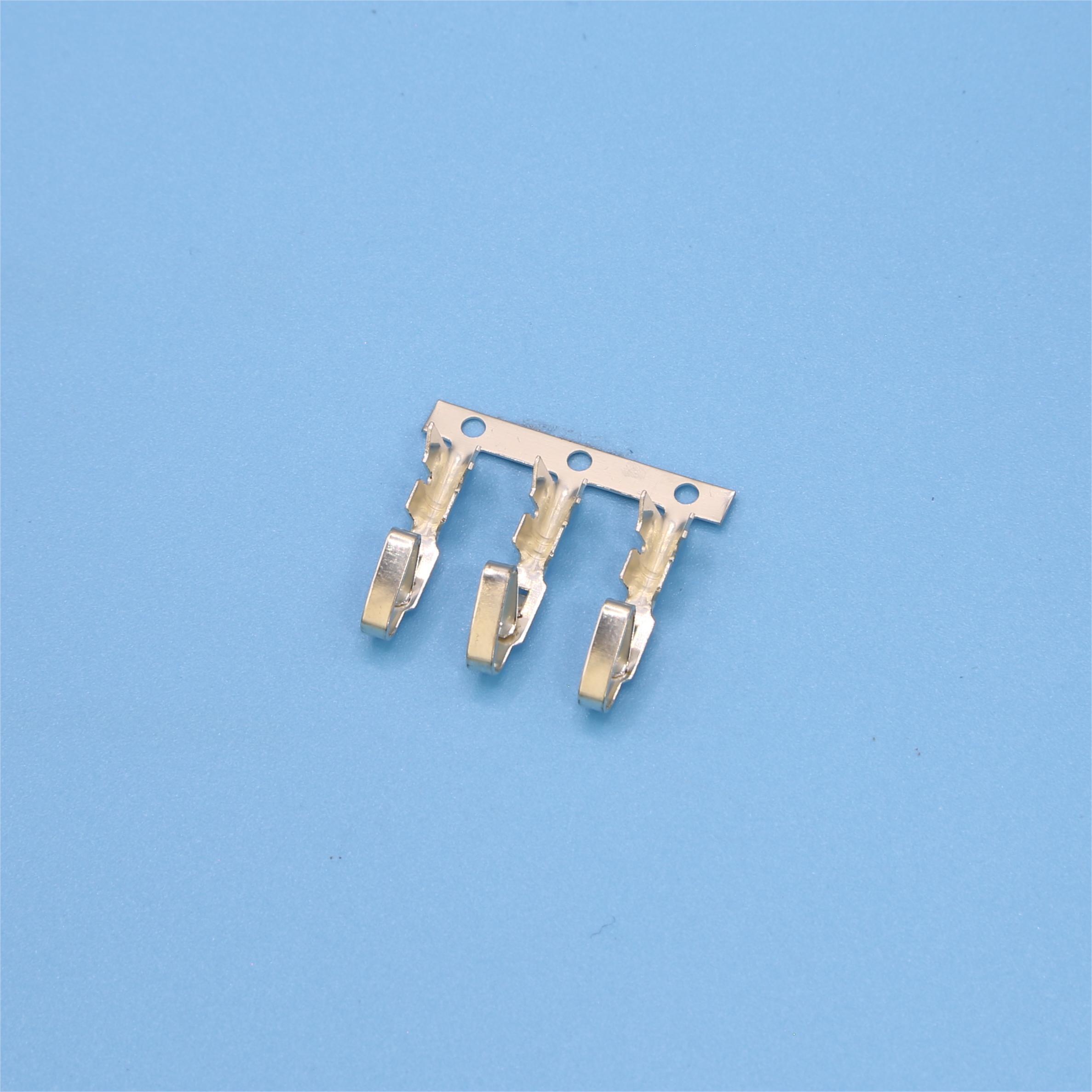

Commonly known as(俗稱):MOLEX3.96端子
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#18~#24;
Insulation 0.D(線皮外徑):?2.1~1.45mm;
Mates with housing(配合塑膠):TAH3961-NP Series;
Standard packing(包裝數量):5KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

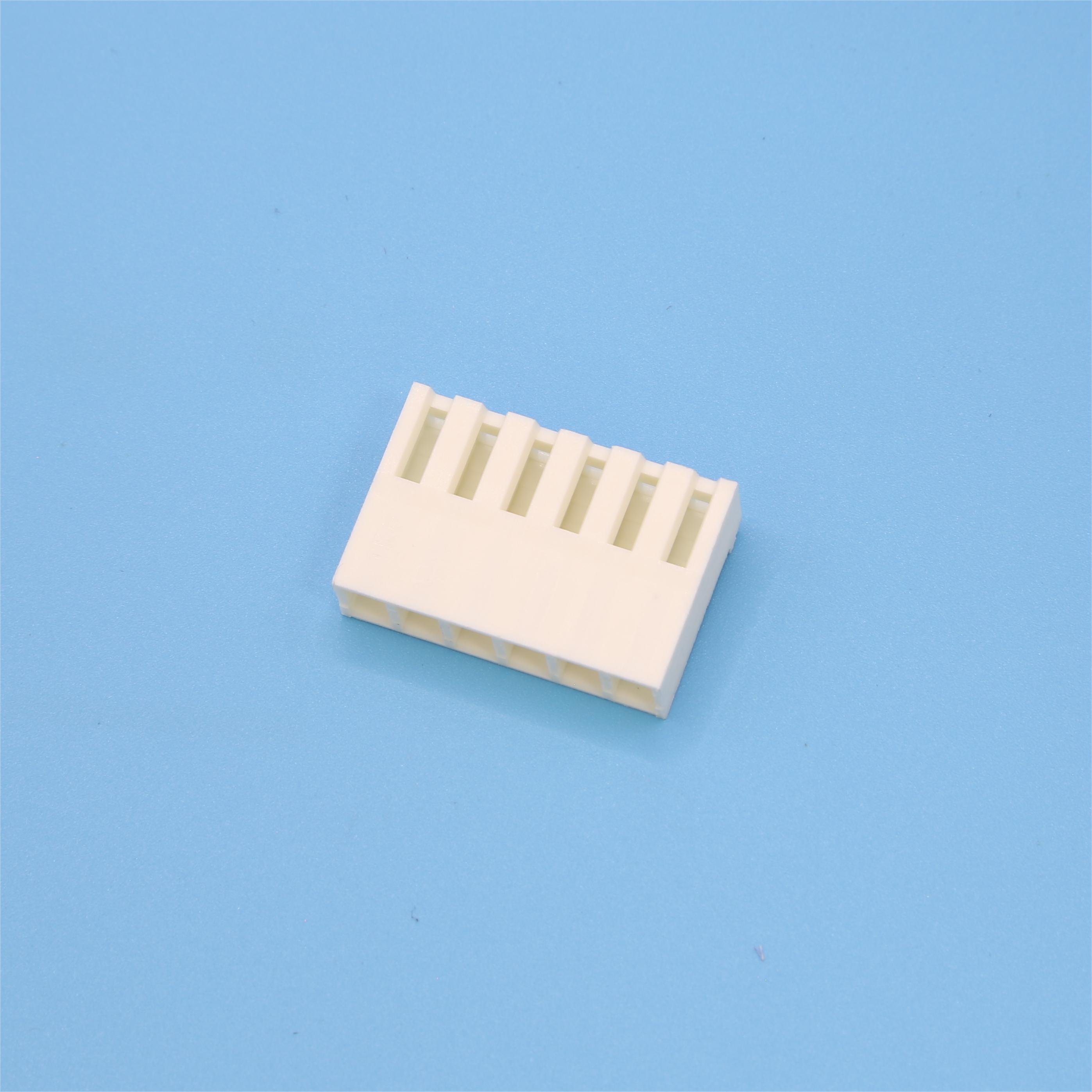

Commonly known as(俗稱):MOLEX3.96膠殼
MATERIAL(材質):PA66 UL94 V-0;
Color(顏色):See List(見列表);
Mates with terminal(配合端子):TAT3961P(B) AS Series;
Mating terminal(對手件):TAW3961-NP Series;
Standard packing(包裝):1KPcs/Bag;
The product conform to the RoHS(此產品符合RoHS要求):

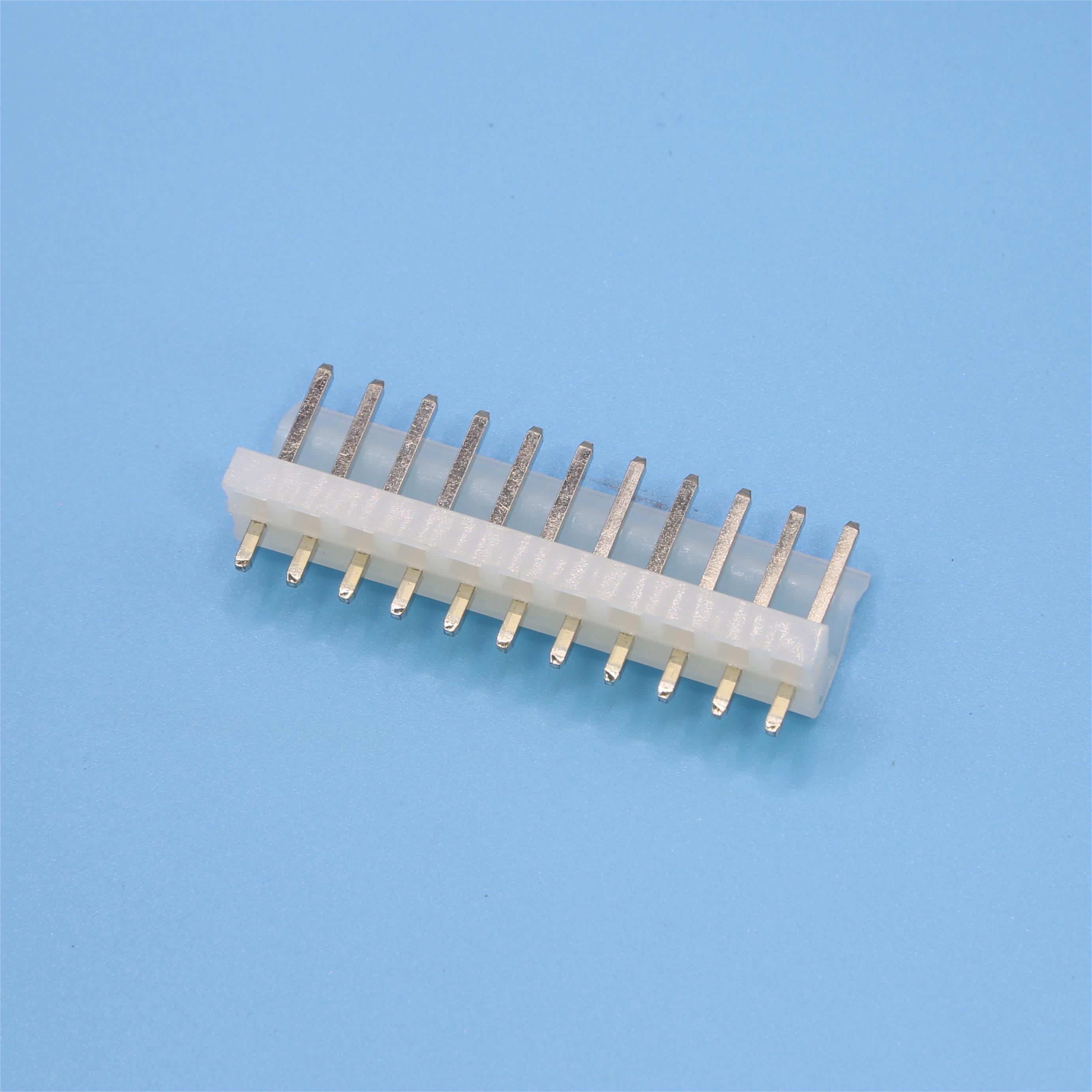

Commonly known as(俗稱):MOLEX3.96針座
Material(材質):
Insulator(塑膠):PA66(UL94 V-2);
PIN: Brass(黃銅);
Color(顏色):See List(見列表);
PIN Surface treatment(PIN表面處理):Tin Plating(鍍錫);
Mates with terminal(配合塑膠):TCH3961-NP Series ;
Standard packing(包裝數量):1P~8P:1KPCS/Disc;
9P~16P:0.5KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
●MATERIAL(材質）:PA66(UL94V-2);
●Colar(顏色):See List(詳見列表);
●Mates with terminal(配合端子):
●The product conform to the RoHS;(此產品符合RoHS)
Commonly known as(俗稱):VH3.96端子
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#18~#22;
Insulation 0.D(線皮外徑):?2.1~1.6mm;
Mates with housing(配合塑膠):TAH3963-NP Series;
Standard packing(包裝數量):3.2KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

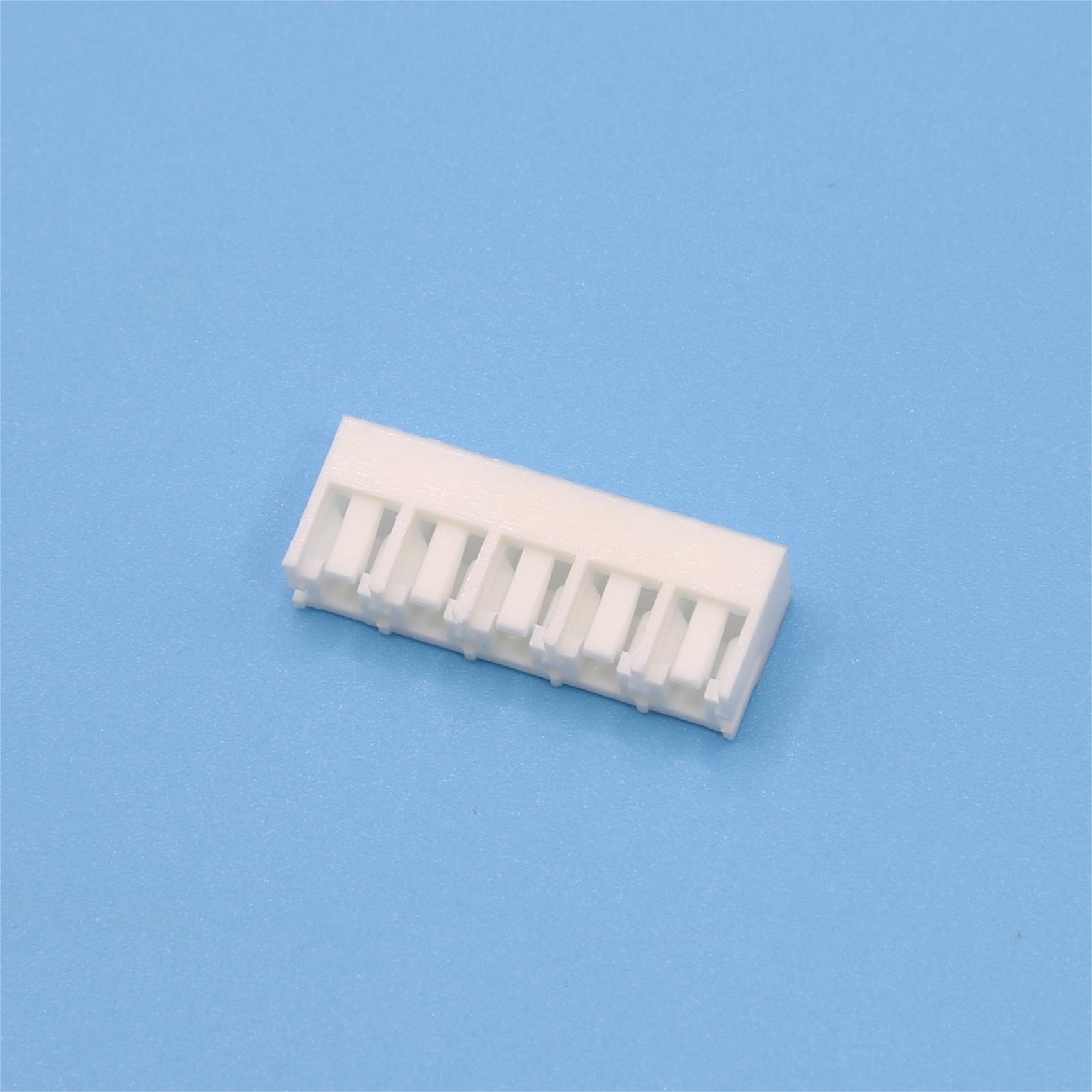

Commonly known as(俗稱):VH3.96膠殼
Material(材質):PA66 UL94 V-0;
Color(顏色):See List(見列表);
Mates with Terminal(配合端子):TAT3963 Series;
Standard packing(包裝數量):2P~10P:1KPCS/Bag:
11P~16P:0.5KPCS/Bag:
The product conform to the RoHS(此產品符合RoHS要求)
Commonly known as(俗稱):VH3.96針座
Material(材質):
Insulator(塑膠):PA66(UL94 V-2);
PIN: Brass(黃銅);
Color(顏色):See List(見列表);
PIN Surface treatment(PIN表面處理):Tin Plating(鍍錫):
Mates with terminal(配合塑膠):TAH3963-3P Series ;
Standard packing(包裝數量):1KPCS/Bag
The product conform to the RoHS(此產品符合RoHS要求)。
