線對板連接器
Commonly known as(俗稱):大六P端子
MATERIAL(材質):Brass(黃銅);
Mates with housing(配合塑膠):TA250H-6P;
Applicable wire(適用線徑):AWG#14~#20;
Standard packing(包裝):5KPcs/R;
The product conform to the RoHS;
Commonly known as(俗稱):250膠殼
MATERIAL(材質）:See List(見列表);
Colar(顏色):Black(黑色);
Mates with terminal(配合端子):See List(見列表);
The product conform to the RoHS; (此產品符合RoHS)
Commonly known as(俗稱):MOLEX1.0端子
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#30~#34:
Insulation 0.D(線皮外徑):01.05mm MAX:
Mates with housing(配合塑膠):TAH1002-NP Series:
Standard packing(包裝數量):20KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):MOLEX1.0膠殼
Material(材質):PA66 GF15(UL94V-0);
Color(顏色):See List(見列表):
Mates with Terminal(配合端子):TAT1002 Series;
Standard packing(包裝數量):1KPCS/Bag:
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):110公端
MATERIAL(材質):Brass(黃銅);
Mates with housing(配合塑膠):TA1101H系列
Applicable wire(適用線徑):See List(見列表);
Insulation 0.D(線皮外徑):See List(見列表);
Standard packing(包裝):4.5KPcs/Disc;
The product conform to the RoHS;
(此產品符合ROHS指令要求);

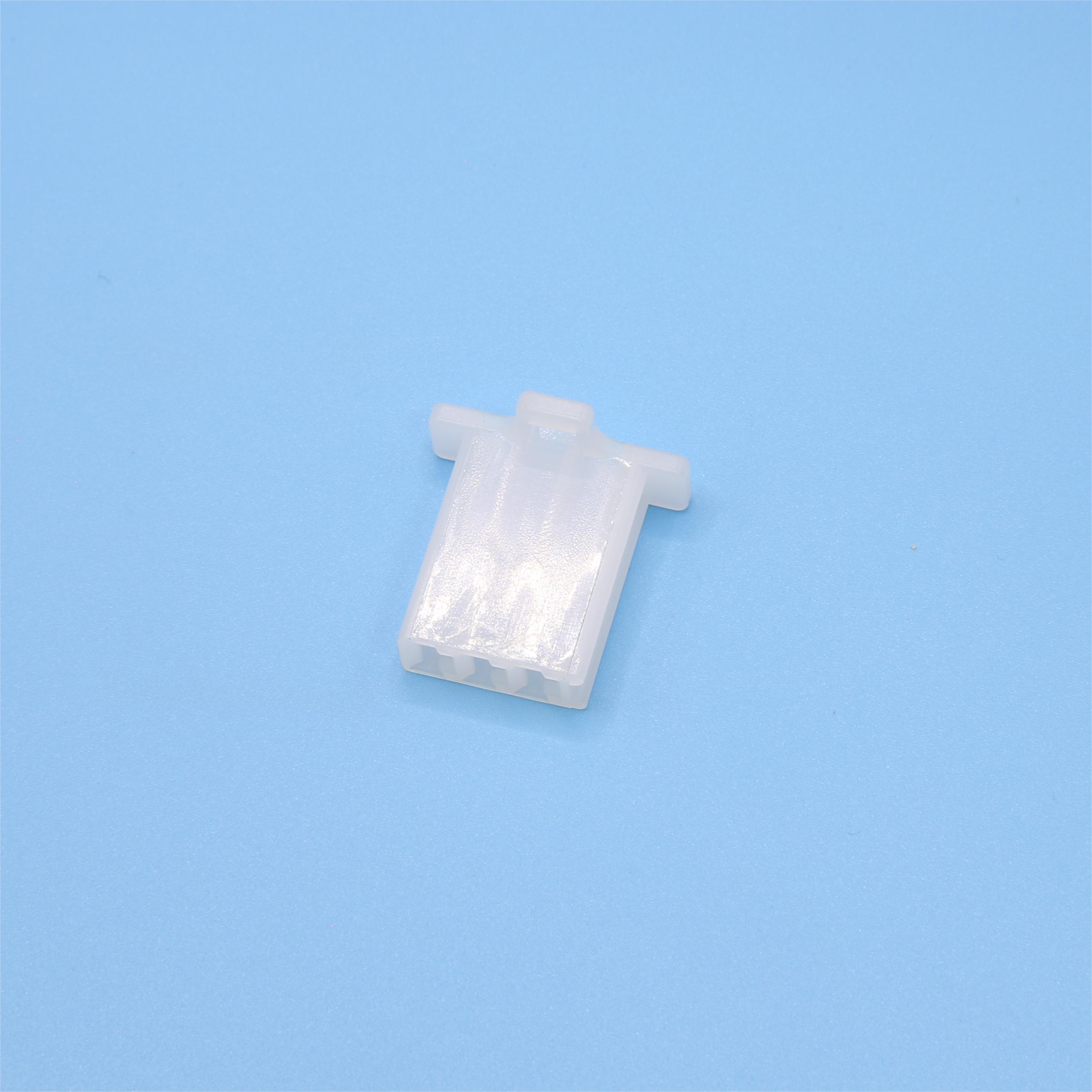

Commonly known as(俗稱):110母殼
Material(材質):PA66(UL94V-2);
Color(顏色):Natural(本色):
Mates with Terminal(配合端子):TAT1101 Series:
Standard packing(包裝數量):1KPCS/Bag:
The product conform to the RoHS(此產品符合RoHS要求)。

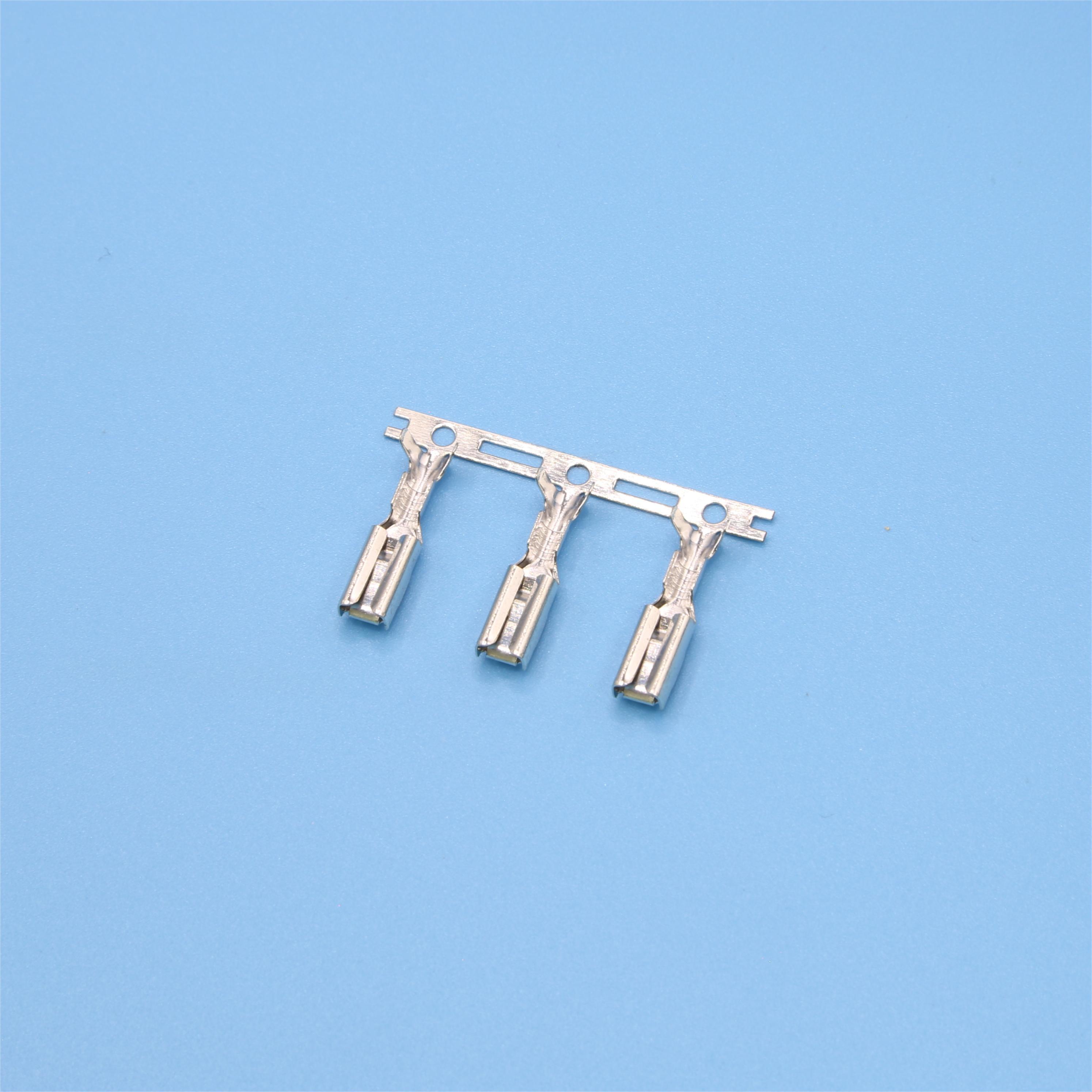

Commonly known as(俗稱):110母端
MATERIAL(材質):Brass(黃銅);
Mates with housing(配合塑膠):TA1102H系列
Applicable wire(適用線徑):UL1007 AWG#18~#22;
Insulation 0.D (線皮外徑):?2.1~1.6mm;
Standard packing(包裝):5KPcs/Disc;
The product conform to the RoHS;
(此產品符合ROHS指令要求);
Commonly known as(俗稱):110公殼
Material(材質):See list(詳見列表):
Color(顏色):See list(詳見列表):
Mates with Terminal(配合端子):TAT1103 Series;
Standard packing(包裝數量):1KPCS/Bag:
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):MOLEX1.25端子
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#28~#30;
Insulation 0.D(線皮外徑):01.2mm MAX;
DMates with housing(配合塑膠):TAH1251-NP Series;
Standard packing(包裝數量):15KPCS/Diso;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):MOLEX1.25膠殼
Material(材質):PA66 GF15(UL94V-0);
Color(顏色):See List(見列表);
Mates with Terminal(配合端子):TAT1251 Series:
Standard packing(包裝數量):1KPCS/Bag:
The product conform to the RoHS(此產品符合RoHS要求)。
