線對板連接器
Commonly known as(俗稱):JST1.5端子
MATERIAL(材質):Phosphor Bronze(磷銅);
Mates with housing(配合塑膠):TA1501H-NP系列;
Applicable wire(適用線徑)：UL1007 AWG#28~#32;
Insulation O.D（線皮外徑）：?1.2~1.0mm;
Standard packing(包裝):10KPcs/Disc;
The product conform to the RoHS;
(此產品符合ROHS指令要求);

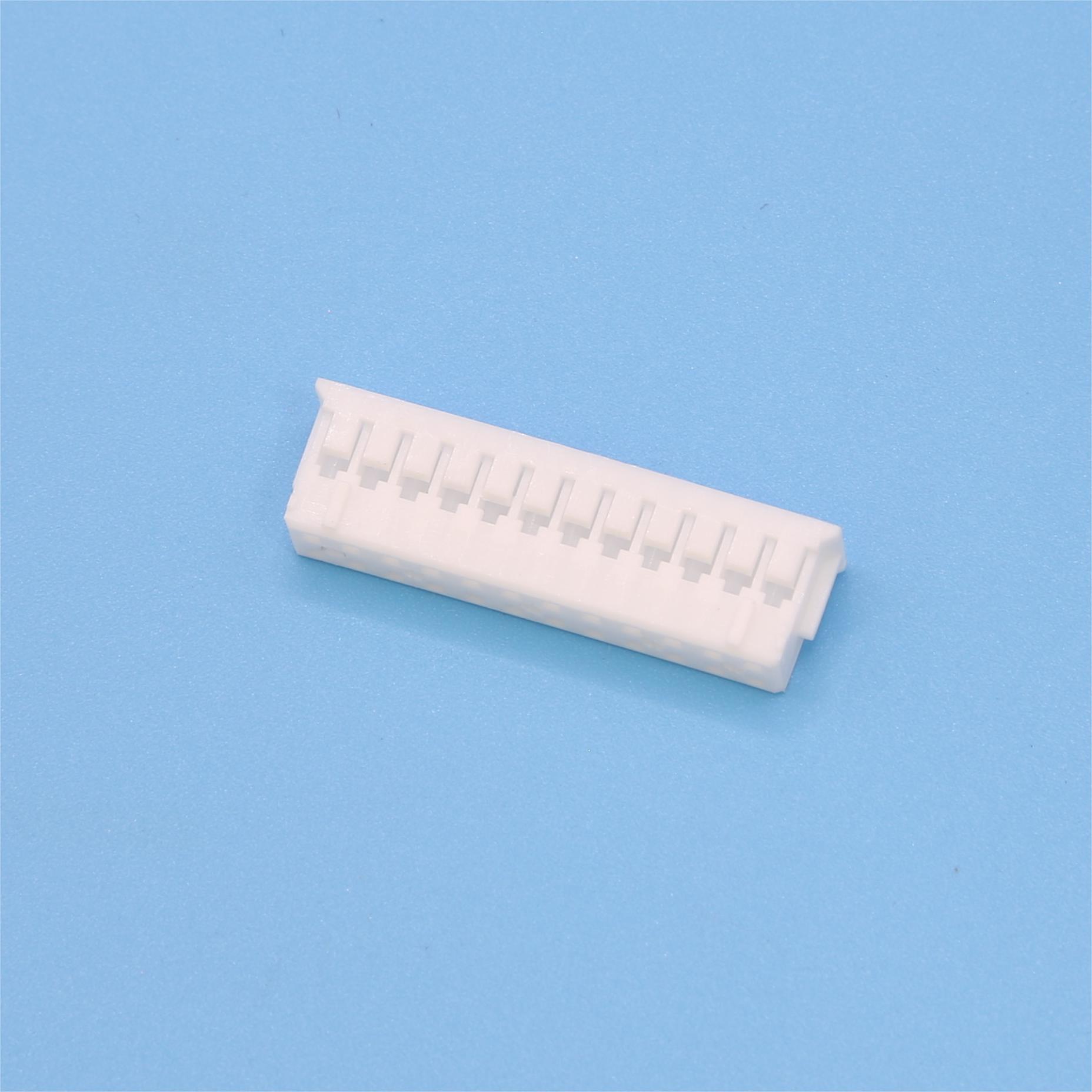

Commonly known as(俗稱):JST1.5膠殼
Material(材質):PA66(UL94V-0);
Color(顏色):See List(見列表):
Mates with Terminal(配合端子):TAT1501 Series;
Standard packing(包裝數量):1KPCS/Bag;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):PH2.0端子
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#22~#28;
Insulation 0.D(線皮外徑):?1.6~1.2mm;
Mates with housing(配合塑膠):TAH2001 Series;
Standard packing(包裝數量):10KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):PH2.0膠殼
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#22~#28;
Insulation 0.D(線皮外徑):?1.6~1.2mm;
Mates with housing(配合塑膠):TAH2001 Series;
Standard packing(包裝數量):10KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):PH2.0針座
Material(材質):
Insulator(塑膠):PA66(UL94 V-0);
PIN: Brass(黃銅);
Color(顏色):See List(見列表);
PIN Surface treatment(PIN表面處理):Tin Plating(鍍錫):
Mates with terminal(配合塑膠):TAH2001 Series ;
Standard packing(包裝數量):1P~9P:1KPCS/Bag;
10P~16P:0.5KPCS/Bag;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):DUPONT2.0端子
MATERIAL(材質):See List(見列表);
Mates with housing(配合塑膠):TA2005H系列;
Applicable wire(適用線徑):AWG#26-#30;
Insulation O.D（線皮外徑）： 1.3~1.1mm;
Standard packing(包裝):20Kpcs/Disc;
The product conform to the RoHS;
(此產品符合ROHS指令要求);
Commonly known as(俗稱):DUPONT2.0膠殼
Material(材質):See list(詳見列表):
Colar(顏色):See list(詳見列表):
Mating with terminal(配合端子):TA2005B-T系列
Mating terminal(對手件):TA2005W系列
The product conform to the RoHS
(此產品符合RoHS要求)
Commonly known as(俗稱):PH2.0排針
Material(材質):See list(詳見列表):
Colar(顏色):See list(詳見列表):
Mating with terminal(配合端子):TA2005B-T系列
Mating terminal(對手件):TA2005W系列
The product conform to the RoHS
(此產品符合RoHS要求)
Commonly known as(俗稱):PHD2.0端子
Material(材質):Phosphor Bronze(磷銅);
Applicabie wire(適用線徑):UL1007 AWG#24~#28;
Insulation 0.D(線皮外徑):?1.3~1.1mm:
Mates with housing(配合塑膠):TAH2006-2XNP Series;
Standard packing(包裝數量):10KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):PHD2.0膠殼
Material(材質):PA66(UL94V-0);
Color(顏色):See List(見列表):
DMates with Terminal(配合端子):TAT2006 Series;
Standard packing(包裝數量):1KPCS/Bag;
The product conform to the RoHS(此產品符合RoHS要求)。
