線對板連接器
Commonly known as(俗稱):PH2.54排針
Material(材質):
Insulator(塑膠):See List(見列表);
Colar(顏色):See List(見列表);
Contact(接觸件):Brass;
Mates with terminal(配合塑膠):TA2541H-NP系列;
The product conform to the RoHS
(此產品符合RoHS要求)

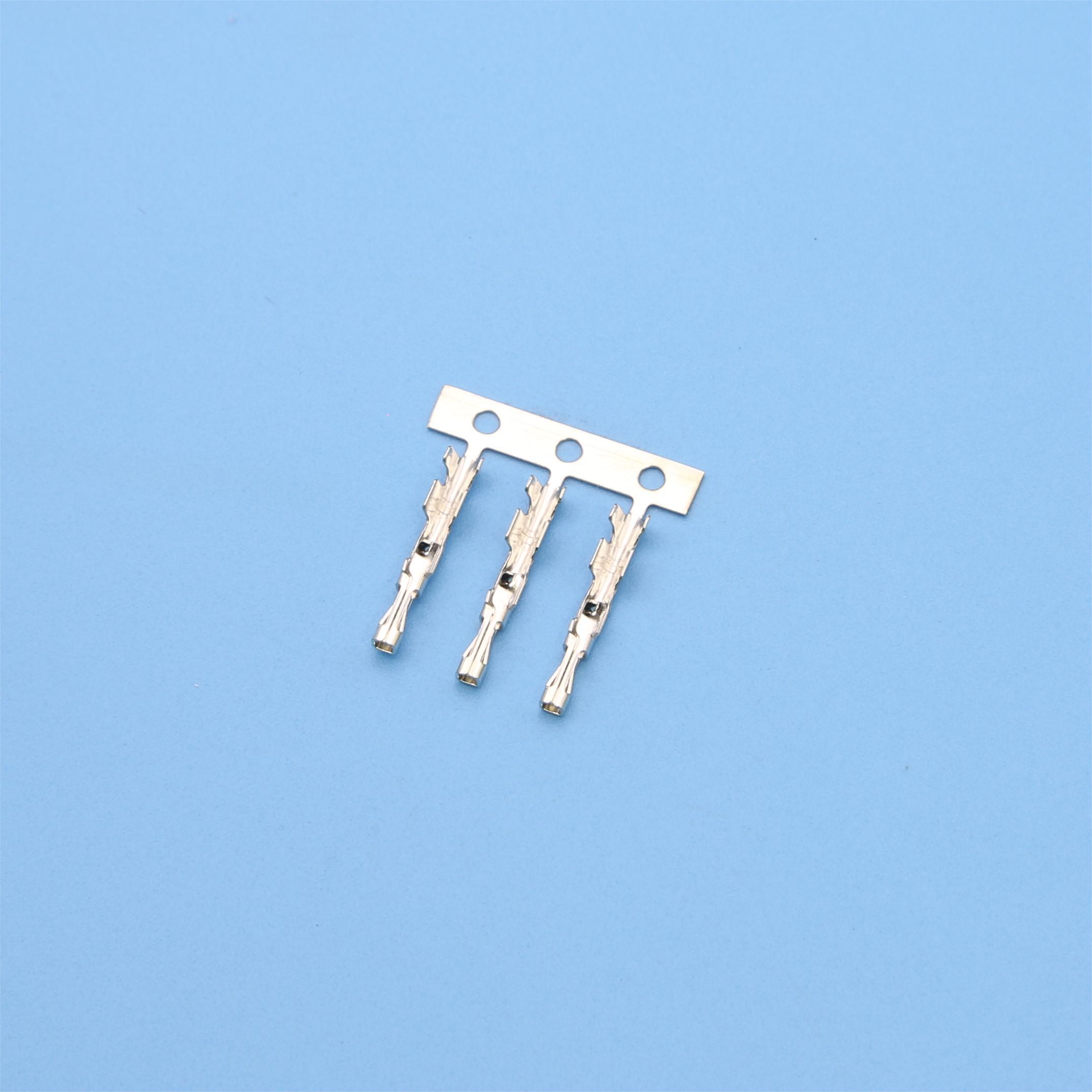

Commonly known as(俗稱):小四P2.54端子
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#22~#26;
Insulation 0.D(線皮外徑):?1.6~1.3mm;
Mates with housing(配合塑膠):TCH2544 Series:
Standard packing(包裝數量):10KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求);

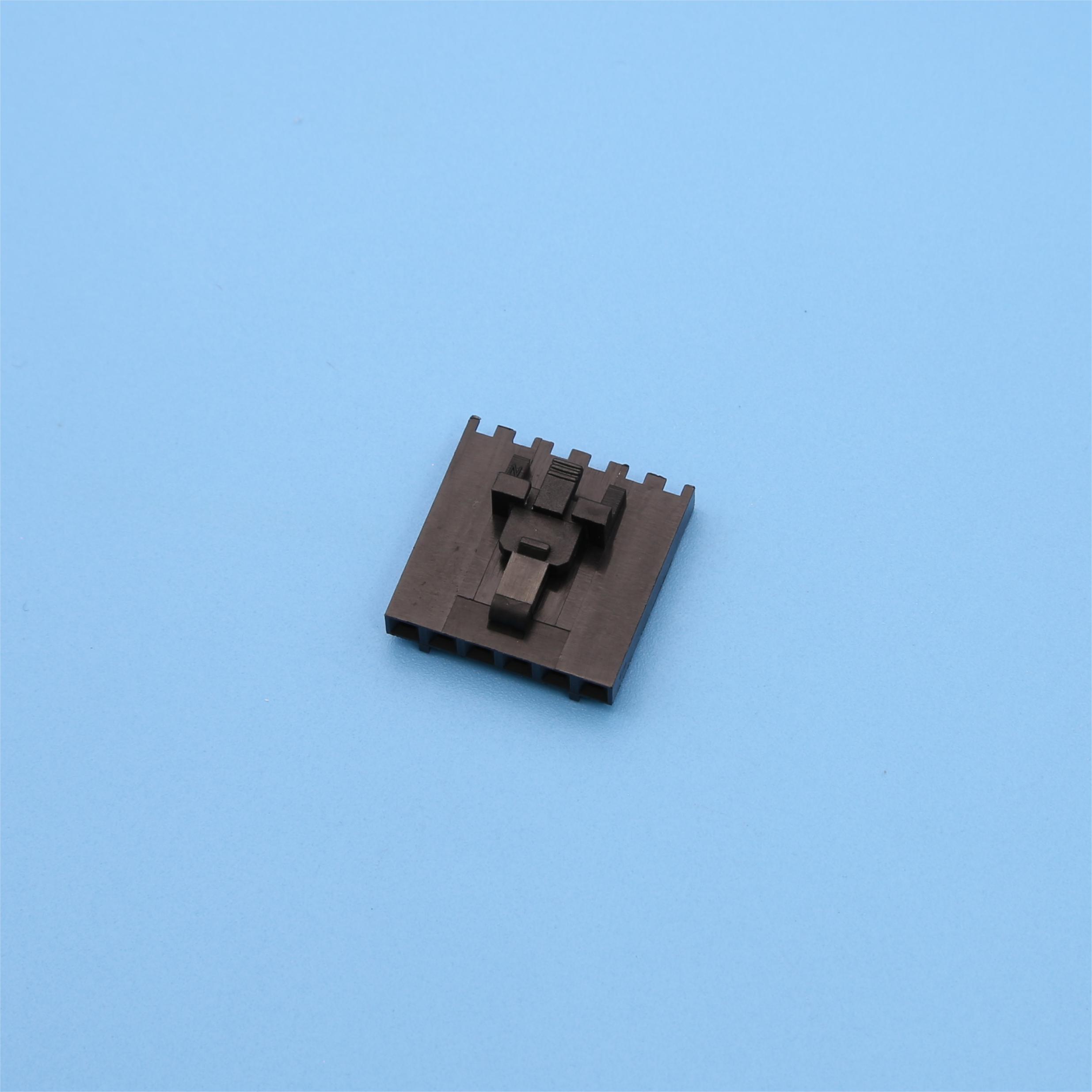

Commonly known as(俗稱):小四P2.54膠殼
Material(材質):See list(詳見列表);
Colar(顏色):See list(詳見列表):
Mates with terminal(配合端子):TAT2544 Series;
Standard packing(包裝):1KPcs/Bag;
The product conform to the RoHS(此產品符合RoHS要求):
Material(材質):See list(詳見列表):
Applicabie wire(適用線徑):See list(詳見列表):
Insulation 0.D(線皮外徑):See list(詳見列表):
Mates with housing(配合塑膠):TAH2547-NP Series;
Standard packing(包裝數量):See list(詳見列表):
The product conform to the RoHS(此產品符合RoHS要求)。
MATERIAL(材質):PA66 UL94 V-2;
Color(顏色)See list(詳見列表):
Mates with terminal(配合端子):TAT2547Series;
Mating terminal(對手件):TAW2547-NP Series;
Standard packing(包裝):1KPcs/Bag;
The product conform to the RoHS(此莉品符合RoHS要求);
Material(材質):
Insulator(塑膠):See List(見列表);
Colar(顏色):See List(見列表);
Contact(接觸件):Brass;
Mates with terminal(配合塑膠):TAH2547-NP系列;
The product conform to the RoHS
(此產品符合RoHS要求)
Commonly known as(俗稱):SATA端子
MATERIAL(材質):Brass(黃銅)/Phosphor Bronze(磷銅);
Mates with housing(配合塑膠):TA3811系列;
Applicable wire(適用線徑):See List(見列表);
Insulation 0.D(線皮外徑):See List(見列表);
Standard packing(包裝):(See diagram above)見圖示說明;
The product conform to the RoHS;
(此產品符合ROHS指令要求);
Commonly known as(俗稱):SATA膠殼
Material(材質):PBT GF15 UL94 V-0;
Colar(顏色):See list(詳見列表):
Mates with Terminal(配合端子):TAT3811PAS-I Series;
Standard packing(包裝數量):1KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):SATA 15P 公座 180度鉚線式
MATERIAL(材質):See List(見列表);
Colar(顏色):Black(黑色);
Applicable wire(適用電線):AWG#18~22#
The product conform to the RoHS directive
(此產品符合RoHS指令要求)
Commonly known as(俗稱):MOLEX3.96端子
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#18~#24;
Insulation 0.D(線皮外徑):?2.1~1.45mm;
Mates with housing(配合塑膠):TAH3961-NP Series;
Standard packing(包裝數量):5KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
