5.08 PITCH系列

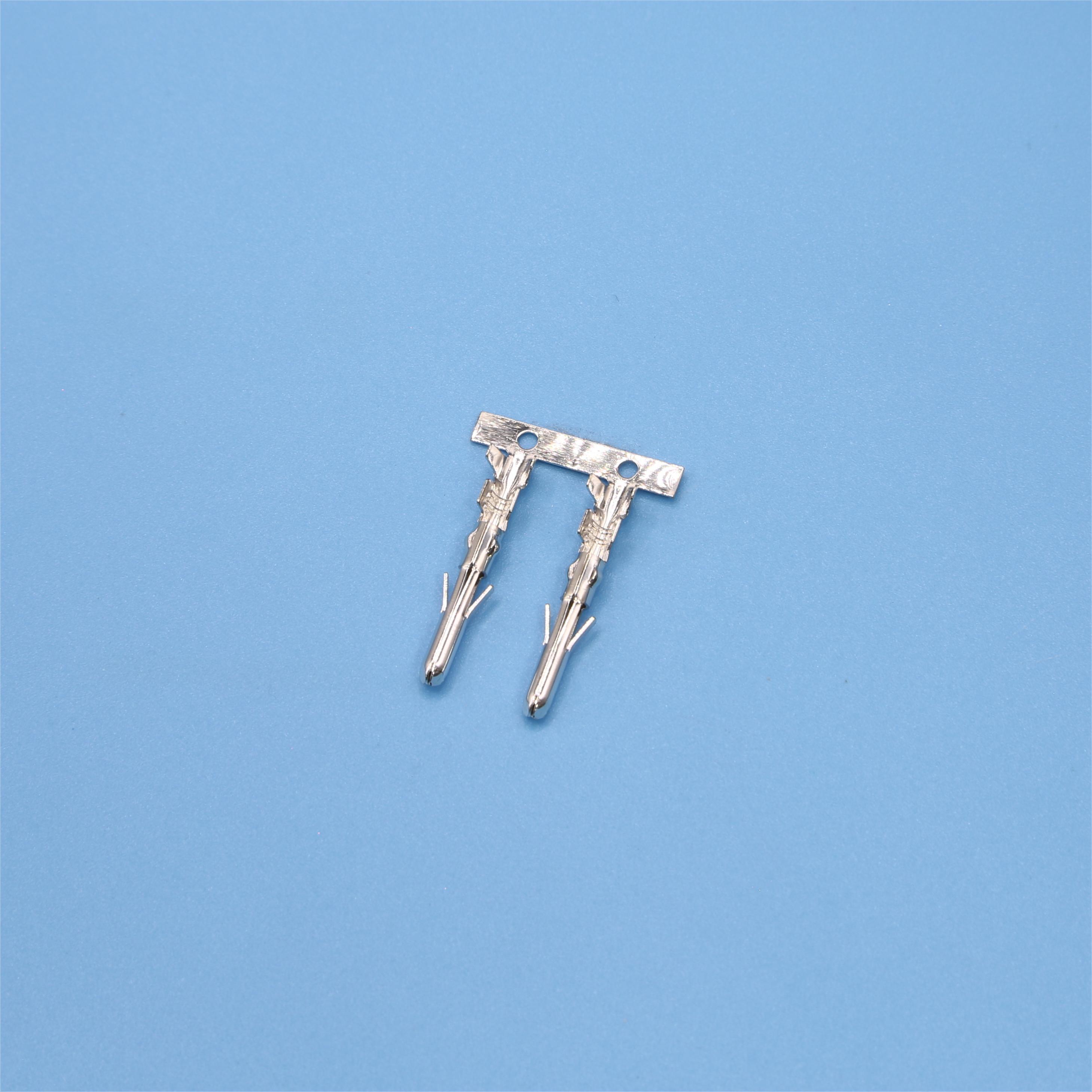

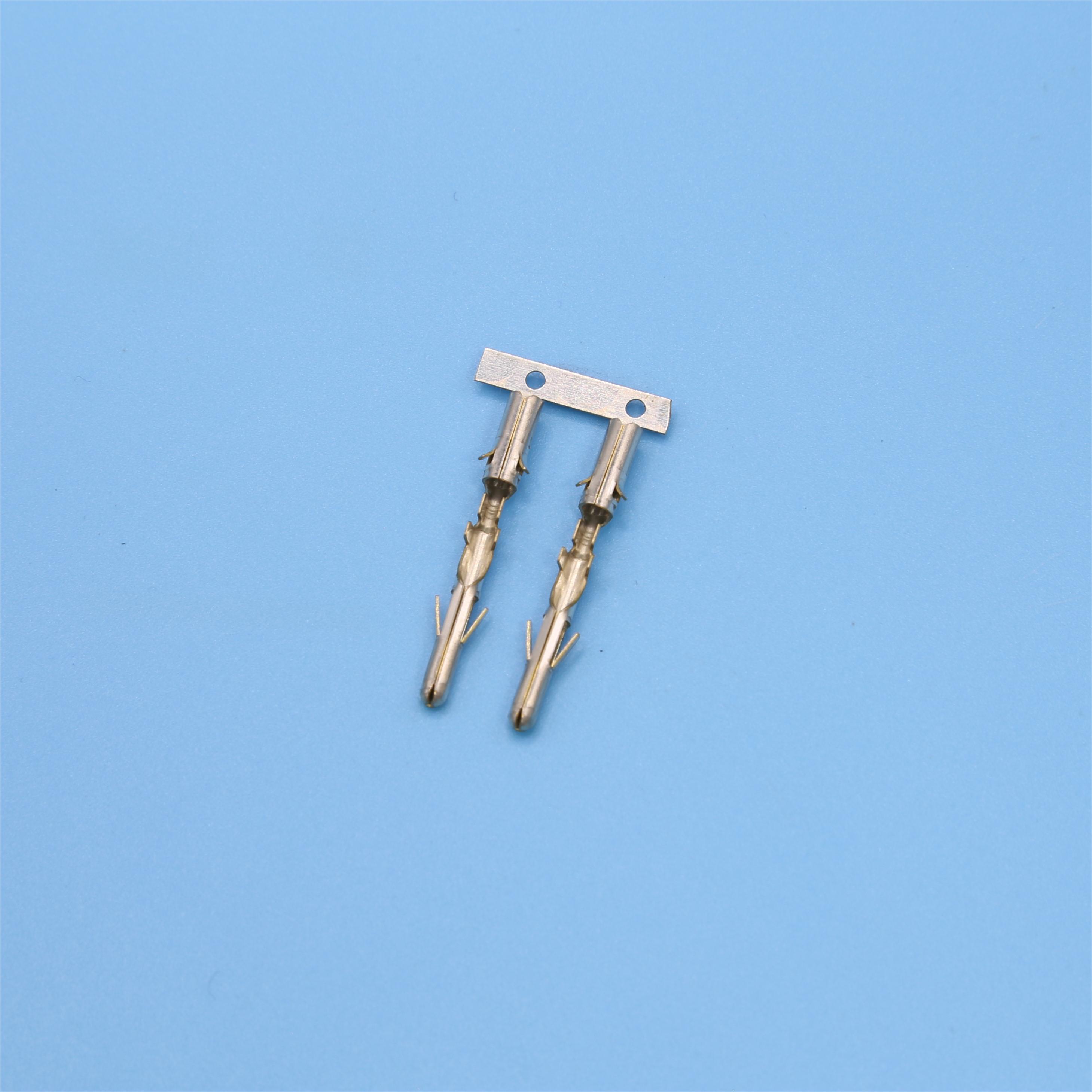

Commonly known as(俗稱):大四P公端
MATERIAL(材質):Brass(黃銅)/Phosphor Bronze(磷銅);
Mates with housing(配合塑膠):TC5081H系列;
Applicable wire(適用線徑):See List(見列表);
Insulation 0.D(線皮外徑):See List(見列表);
Standard packing(包裝):TC5081B/P-T1:7KPcs/Disc
TC5081B/P-TH:6KPcs/Disc;
The product conform to the RoHS;
(此產品符合ROHS指令要求);

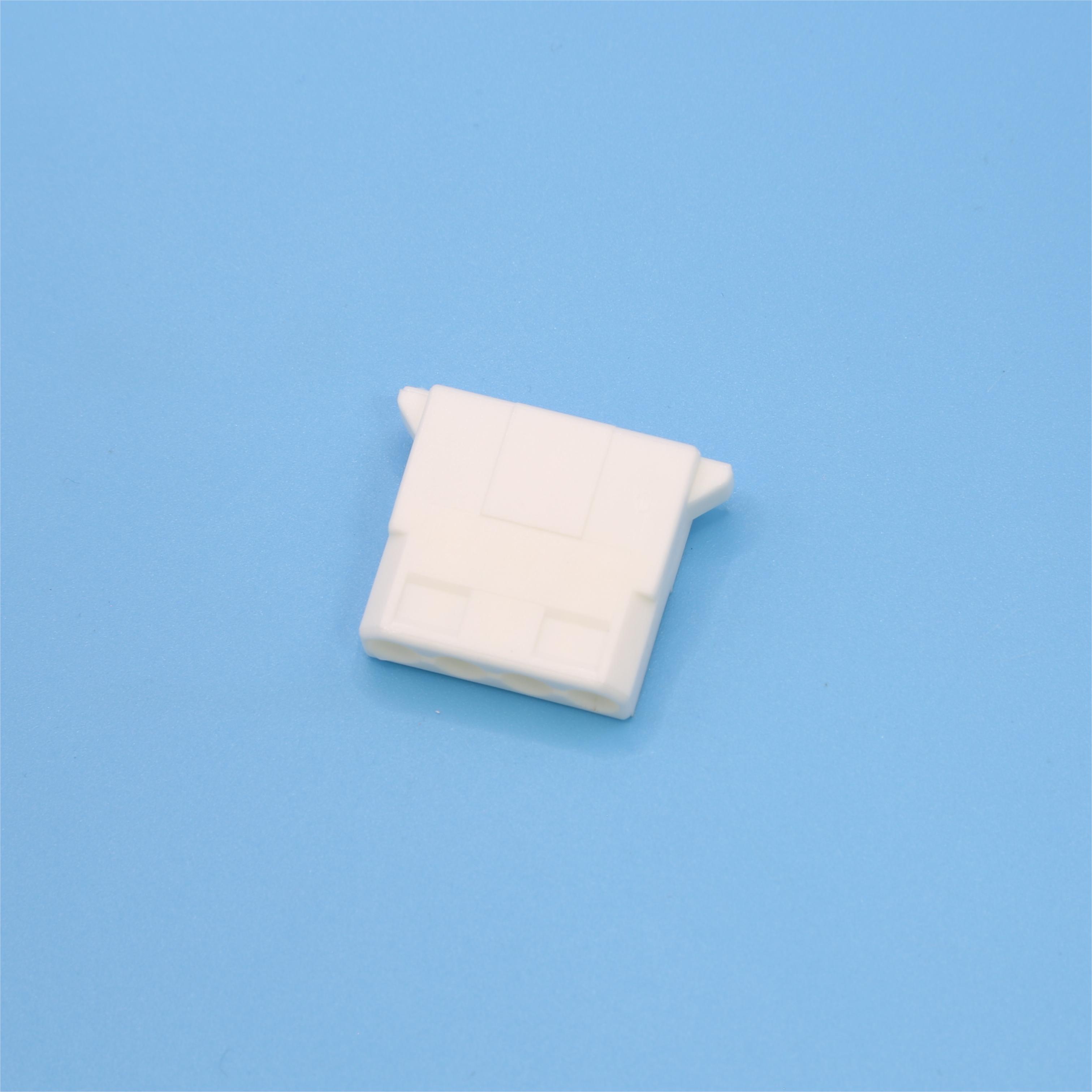

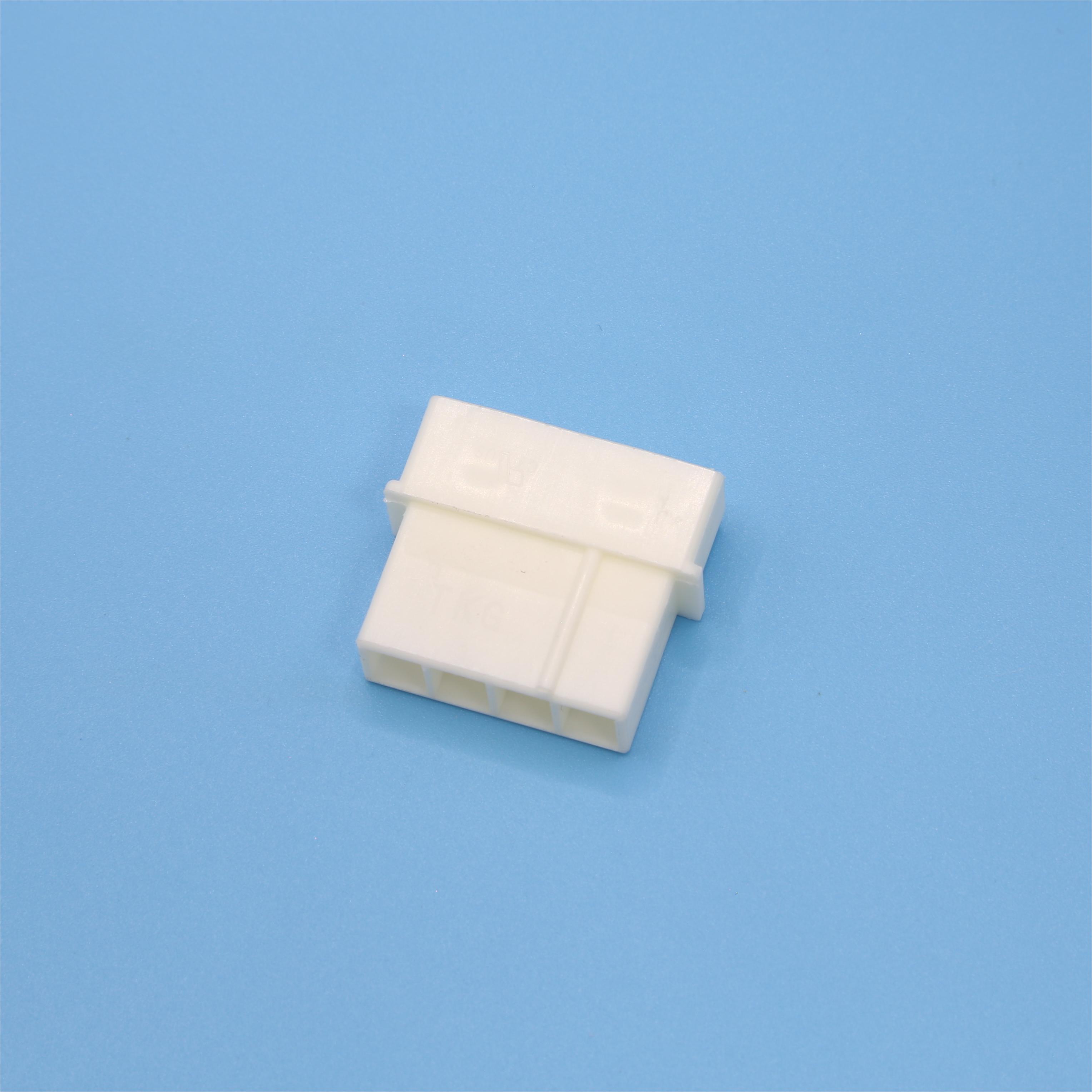

Commonly known as(俗稱):大四P母殼
Material(材質):PA66(UL94 V-0);
Color(顏色):See List(見列表);
Mates with Terminal(配合端子):TCT5081 Series;
Standard packing(包裝數量):1KPCS/Bag;
The product conform to the RoHS(此產品符合RoHS要求)。

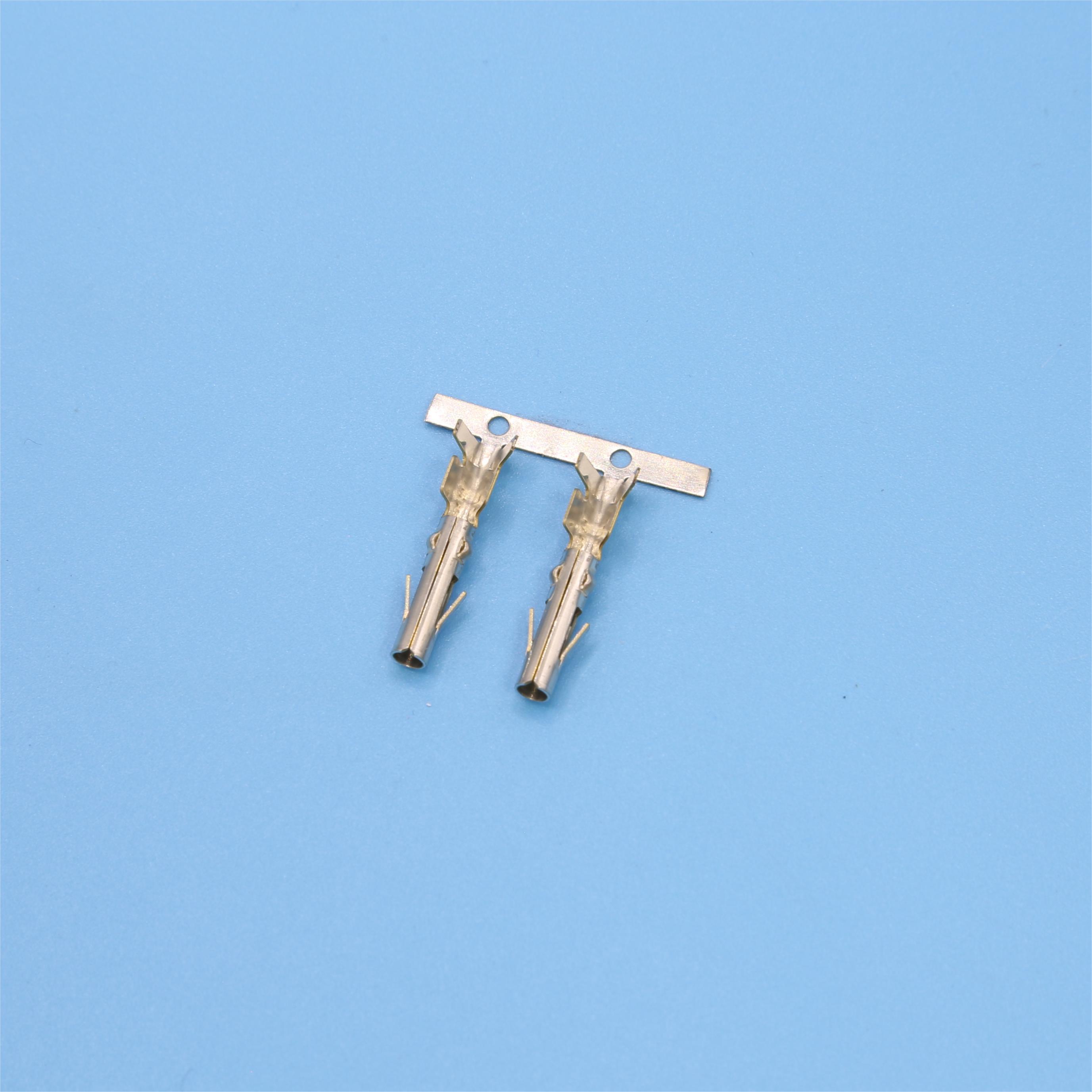

Commonly known as(俗稱):大四P母端
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#18~#22;
Insulation 0.D(線皮外徑):?2.1~1.6mm;
Mates with housing(配合塑膠):TCH5082 Series;
Standard packing(包裝數量):7KPCS/Disc:
The product conform to the RoHS(此產品符合RoHS要求)。

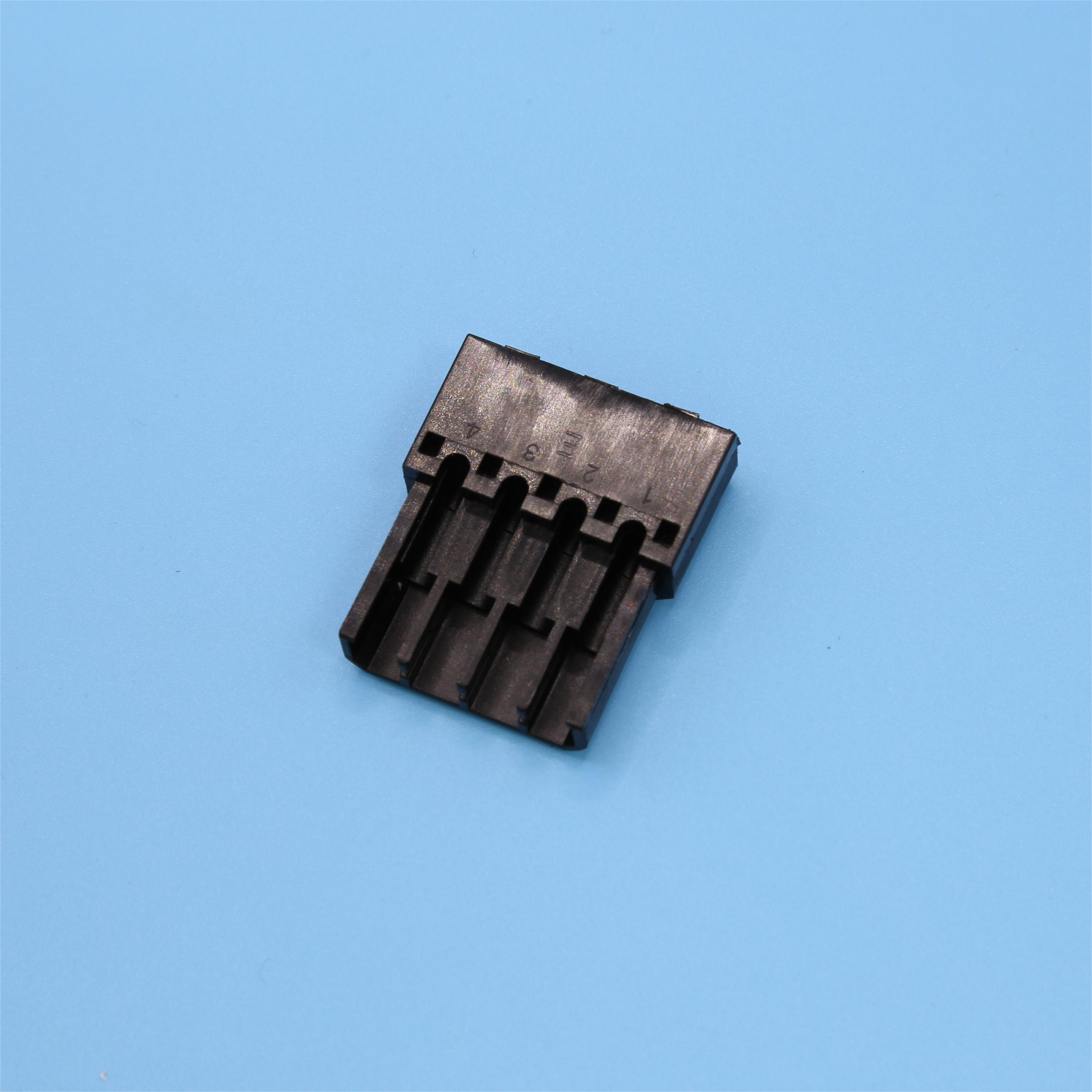

Commonly known as(俗稱):大四P公殼
Material(材質):PA66 UL94 V-0;
Color(顏色):See list(詳見列表);
Mates with terminal(配合端子):TCT5082 Series;
Mating terminal(對手件):TCH5081 Series;
Standard packing(包裝):1KPcs/Bag:
The product conform to the RoHS(此產品符合RoHS要求);

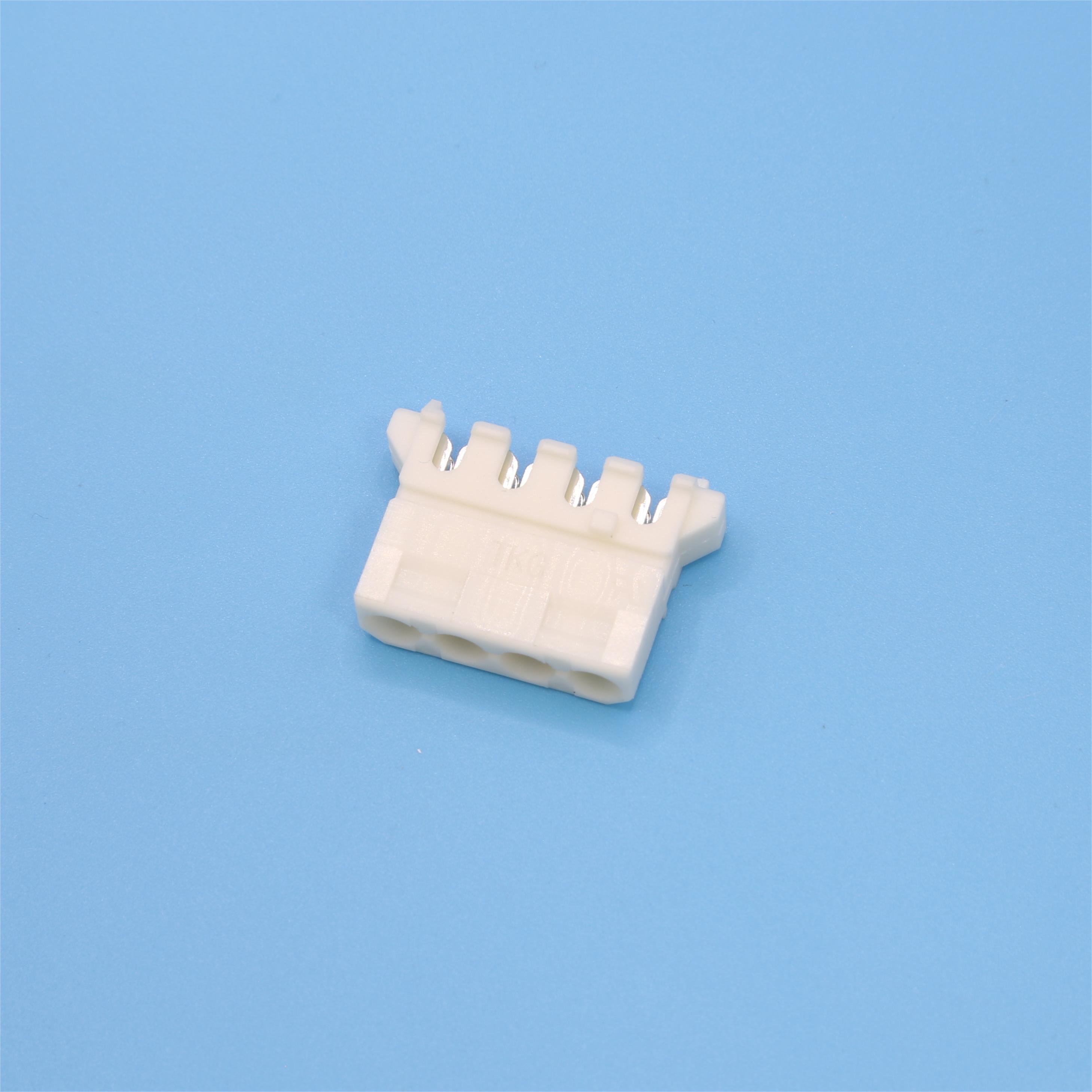

Commonly known as(俗稱):大四P刺破
Material(材質):PA66(UL94 V-0):
Contact(接觸件):Phosphor bronze(磷青銅):
Colar(顏色):See List(見列表);
Applicable wire(適用電線):See List(見列表):
Mates with Housing(配合塑膠):TCH5082C Series:
Standard packing(包裝數量):1KPCS/Bag:
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):大四P公母連體端
MATERIAL(材質):See List(見列表);
Mates with housing(配合塑膠):TC5085H系列;
Applicable wire(適用線徑):AWG#20~#24;
Insulation 0.D(線皮外徑):?1.85~1.45mm;
Standard packing(包裝):8KPcs/R;
The product conform to the RoHS
(此產品符合ROHS指令要求);
Commonly known as(俗稱):大四P公母連體膠殼
MATERIAL(材質):See List(見列表);
Product Colar(產品顏色):See List(見列表):
Mates with terminal(配合端子):TC5085B/P-T1系列:
Mating terminal(對手件):TC5082H系列
The product conform to the RoHS
(此產品符合RoHS要求);
