插基板連接器

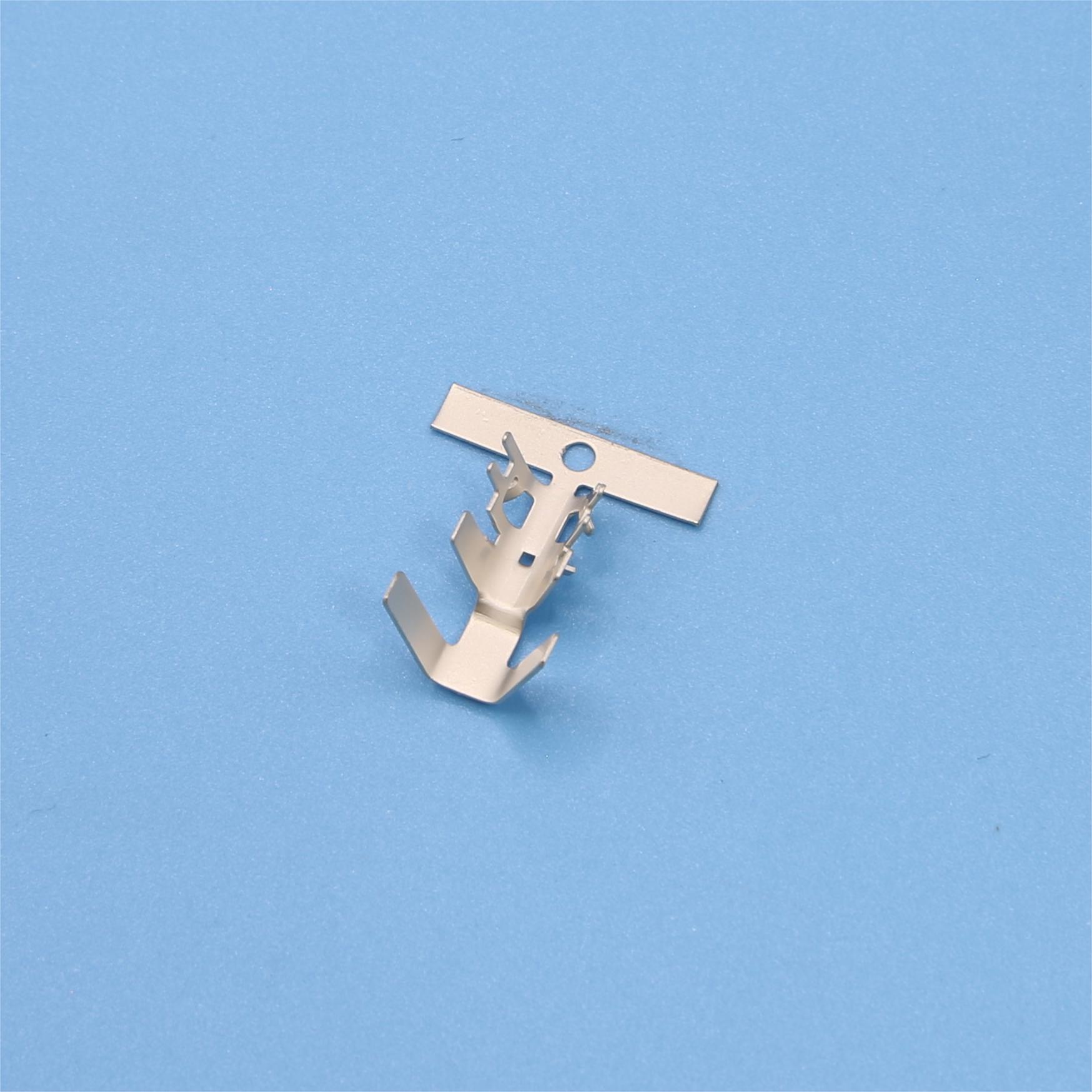

Commonly known as(俗稱):SAN2.0基端
Material(材質):Phosphor bronze(磷銅);
Applicabie wire(適用線徑):AWG#22~#28;
Insulation 0.D(線皮外徑):?1.60~1.20;
Mates with housing(配合塑膠):TBH2011-NP Series;
Standard packing(包裝數量):10KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

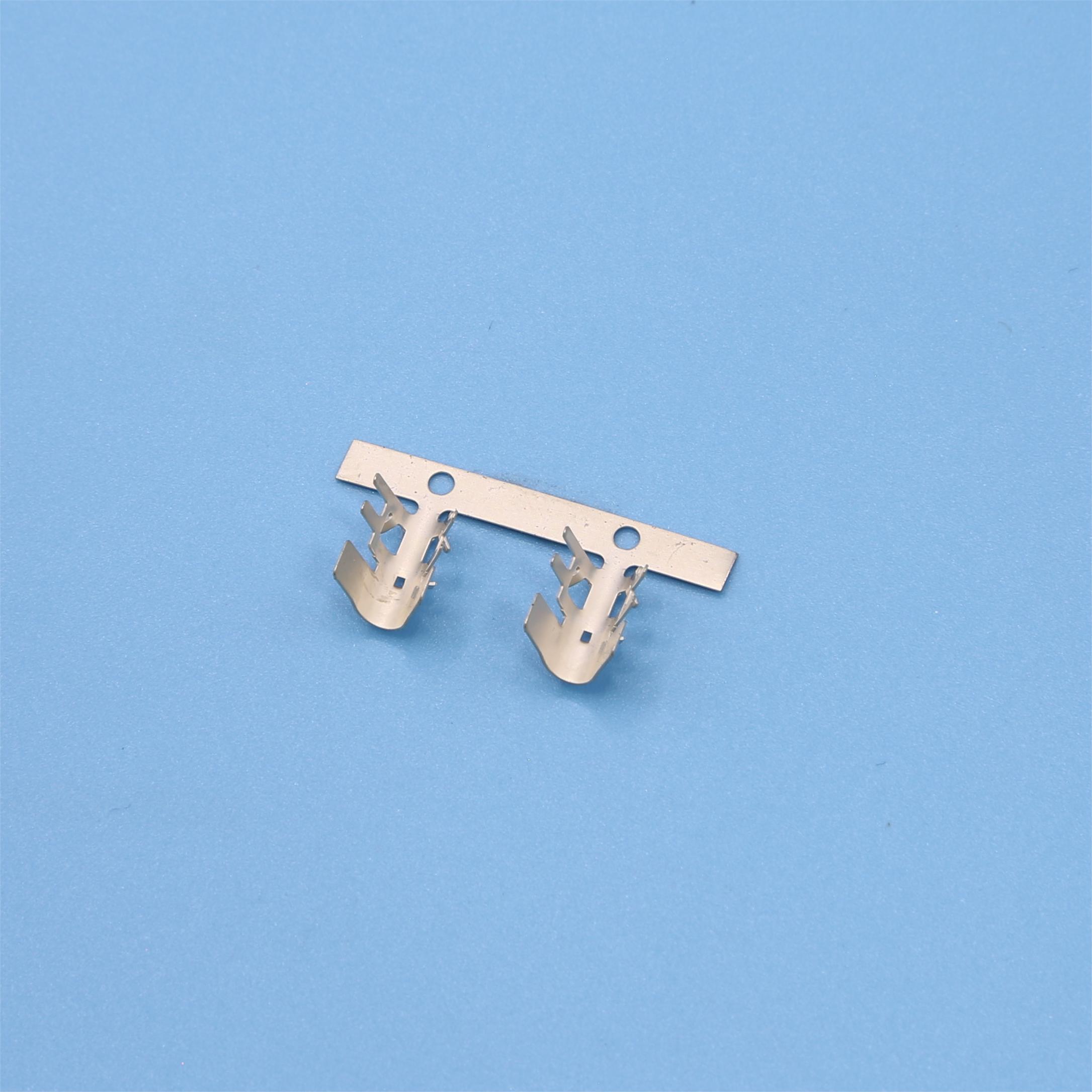

Commonly known as(俗稱):3.2基板端
Material(材質):Phosphor bronze(磷青銅);
Applicabie wire(適用線徑):UL1007 AWG#18*3;
Insulation 0.D(線皮外徑):?2.1mm:
Mates with P.C.B.aperture(配合P.C.B.孔徑):?3.2mm;
Mates with P.C.B.Tthinkness(配合P.C.B.厚度):?1.8~2.0mm;
Standard packing(包裝數量):3.5KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

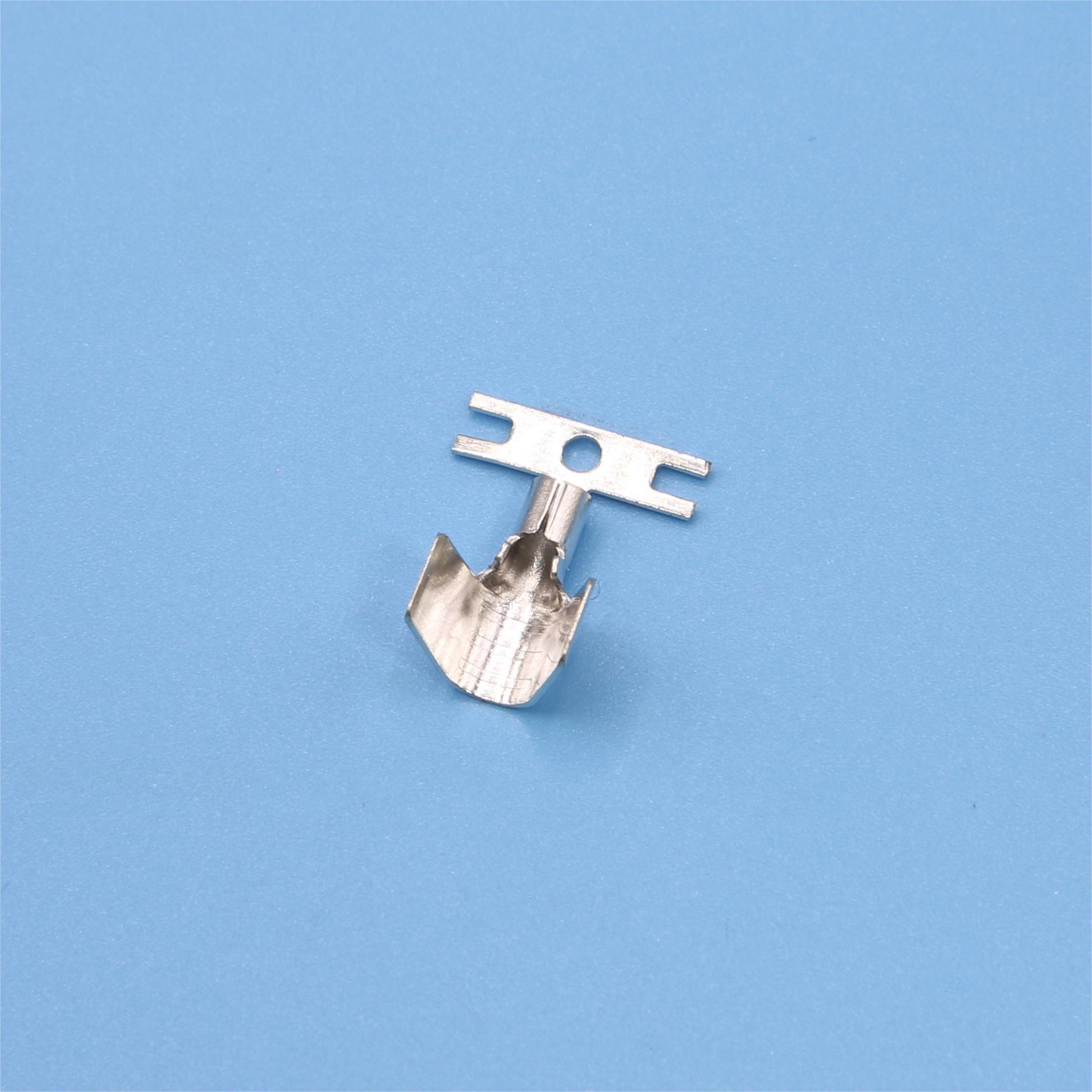

Commonly known as(俗稱):φ3.2基板端子 包PVC
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#20x3~5;
Insulation 0.D(線皮外徑):01.85mm;
Mates with P.C.B.aperture(配合P.C.B.孔徑):03.2mm;
Mates with P.C.B.Tthinkness(配合P.C.B.厚度):1.8mm;
Standard packing(包裝數量):2KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

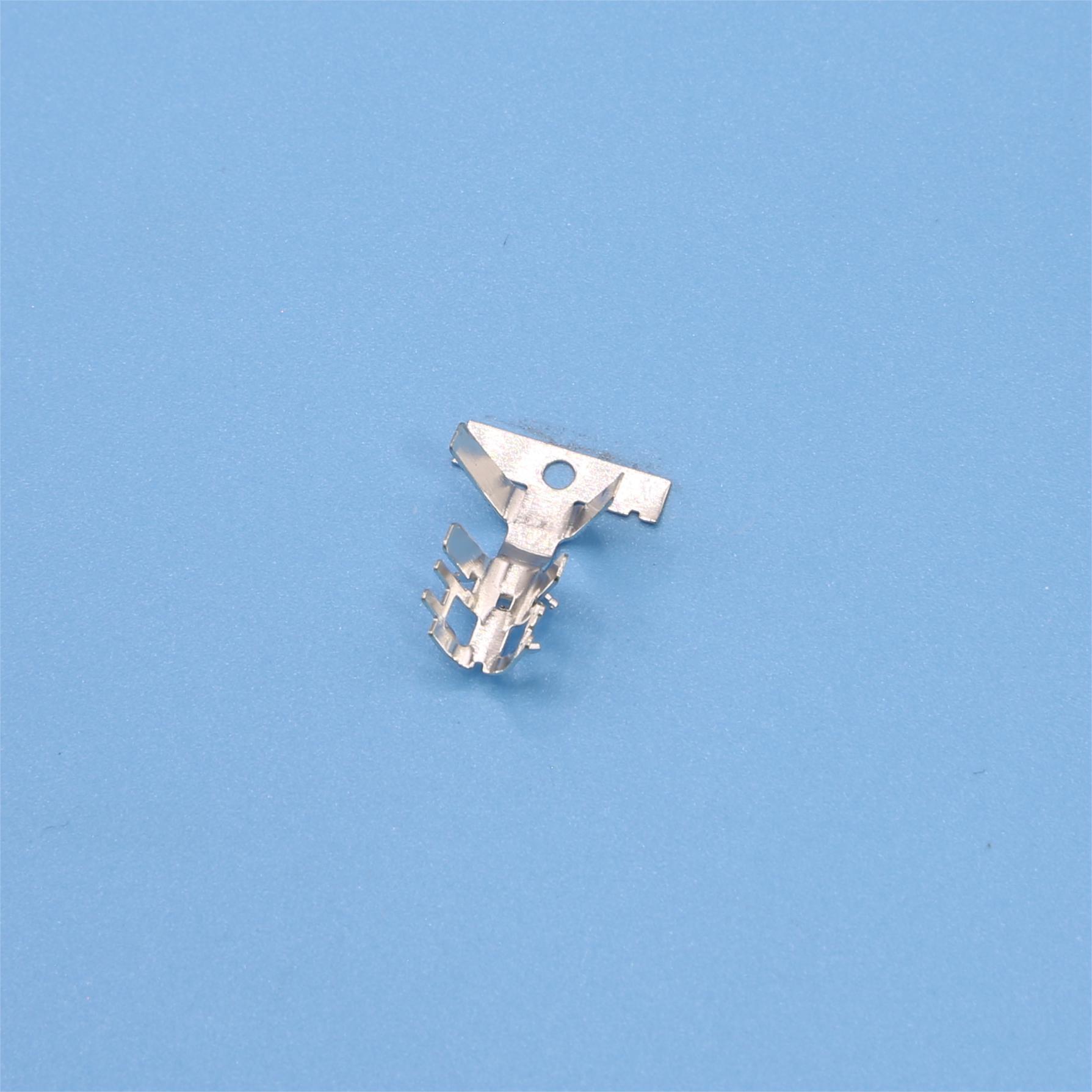

Commonly known as(俗稱):3.2長體基板端子 包PVC
Material(材質):Brass(黃銅);
Applicabie wire(適用線徑):UL1007 AWG#20x5~7:
Insulation 0.D(線皮外徑):?1.85mm;
Mates with P.C.B.aperture(配合P.C.B.孔徑):?3.2mm;
Mates with P.C.B.Tthinkness(配合P.C.B.厚度):1.8mm;
Standard packing(包裝數量):1KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

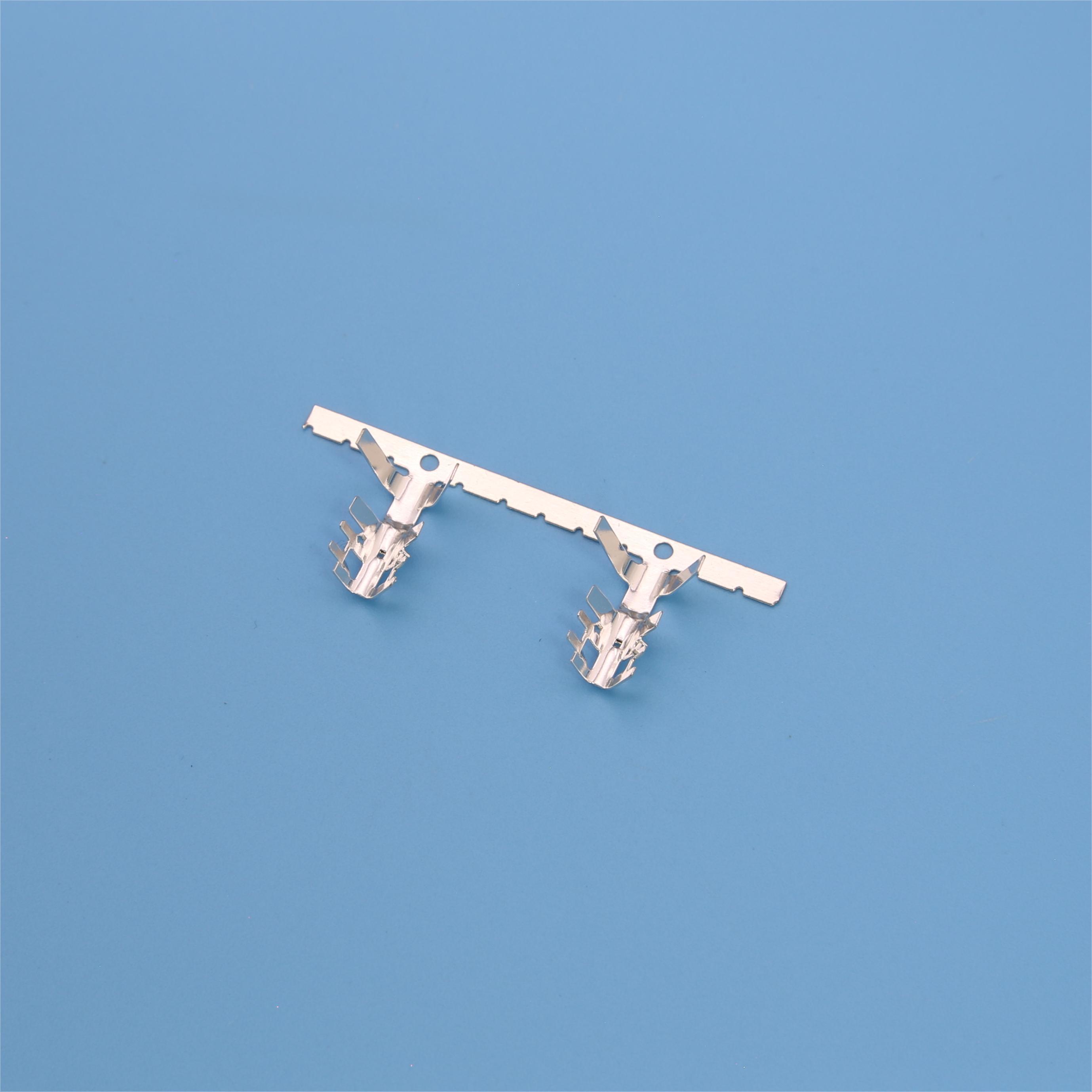

Commonly known as(俗稱):3.2基板端 頭部不包圓包PVC中腳
Material(材質):Brass(黃銅);
Applicabie wire(適用線徑):See List(見列表);
Standard packing(包裝數量):2KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。

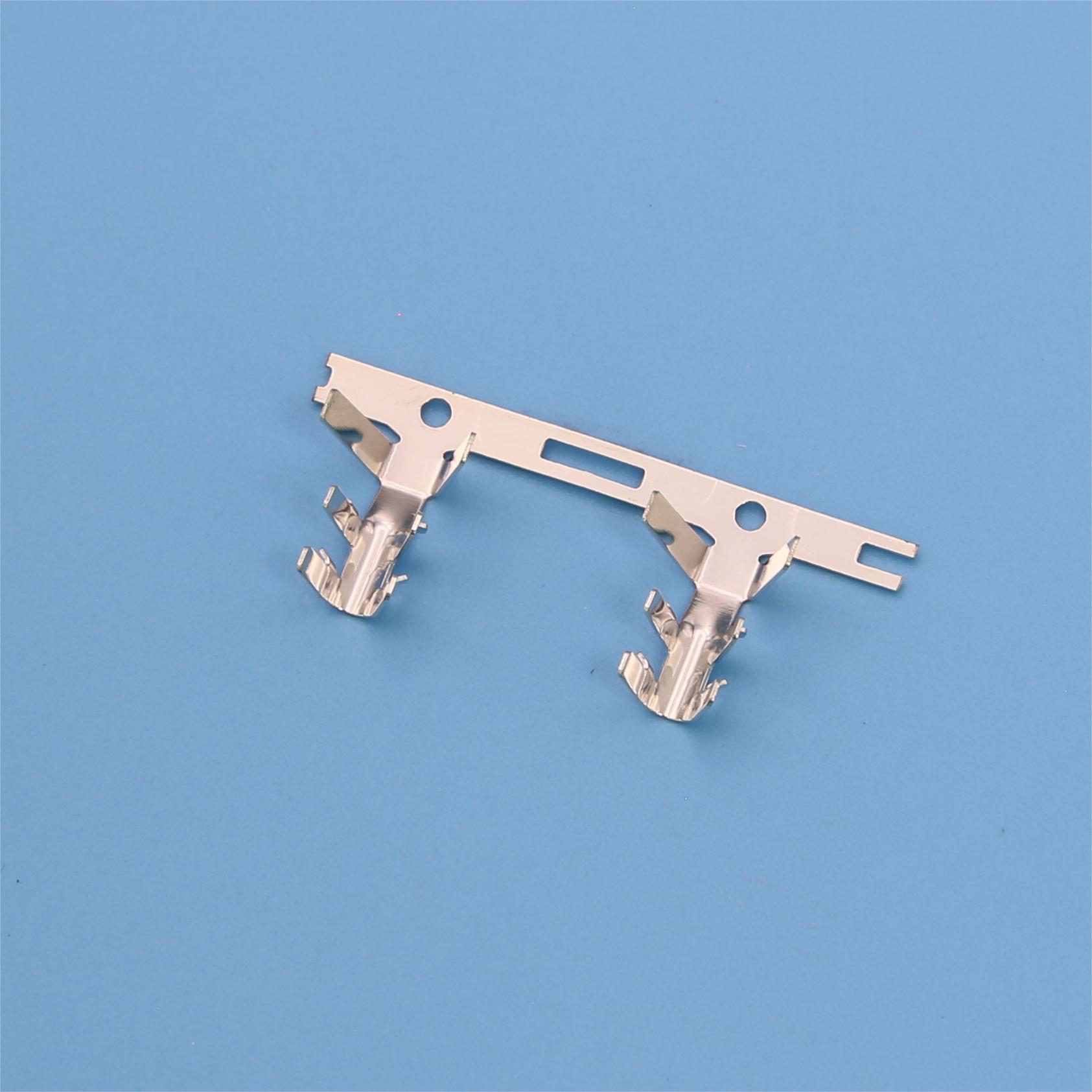

Commonly known as(俗稱):φ3.2大電流基板端 不包PVC
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):UL1007 AWG#18X3~5;
Insulation 0.D(線皮外徑):?2.1mmX3~5;
Standard packing(包裝數量):1.5KPCS/Disc;
The product conform to the RoHS(此產品符合RoHS要求)。
Commonly known as(俗稱):φ3.2 頭部包圓 包PVC端子
MATERIAL(材質):See List(見列表)；
Contact Plating(電鍍):See List(見列表)；
Applicable wire(適用線徑):UL1007 AWG#20（3 to 7);
Insulation O.D（線皮外徑）：?1.85;
Standard packing(包裝):2KPCS/DISC;
The product conform to the RoHS;
(此產品符合ROHS指令要求);
Commonly known as(俗稱):JE3.96基板端
MATERIAL(材質):See List(見列表)；
Contact Plating(電鍍):See List(見列表)；
Applicable wire(適用線徑):UL1007 AWG#16~#22
Insulation O.D（線皮外徑）：?2.4~1.6;
Standard packing(包裝):5KPCS/DISC;
The product conform to the RoHS;
(此產品符合ROHS指令要求);
Commonly known as(俗稱):JE3.96 膠殼
MATERIAL(材質):PA66(UL94V-2);
Product Colar(產品顏色):Natural(本色）;
Mates with terminal(配合端子）: TB3951P-T系列;
The product conform to the RoHS
(此產品符合RoHS要求) ;
Commonly known as(俗稱):φ5.1基板端
Material(材質):See list(詳見列表);
Applicabie wire(適用線徑):See list(詳見列表);
Insulation 0.D(線皮外徑):See list(詳見列表);
Mates with housing(配合塑膠):TBH5001 Series;
Mates with P.C.B.aperture(配合P.C.B.孔徑):See list(詳見列表);
Mates with P.C.B.Tthinkness(配合P.C.B.厚度):See list(詳見列表);
Standard packing(包裝數量):See list(詳見列表);
The product conform to the RoHS(此產品符合RoHS指定需求)。
